Mass Airflow (MAF) Sensor
The MAF sensor uses a hot wire sensing element to measure the amount of air entering the engine. Air passing over the hot wire causes it to cool. This hot wire is maintained at 200°C (392°F) above the ambient temperature as measured by a constant cold wire. The current required to maintain the temperature of the hot wire is proportional to the mass airflow. The MAF sensor then outputs a signal to the PCM proportional to the intake air mass. The PCM calculates the required fuel injector pulse width in order to provide the desired air to fuel ratio. This input is also used in determining transmission electronic pressure control (EPC), shift, and torque converter clutch (TCC) scheduling.

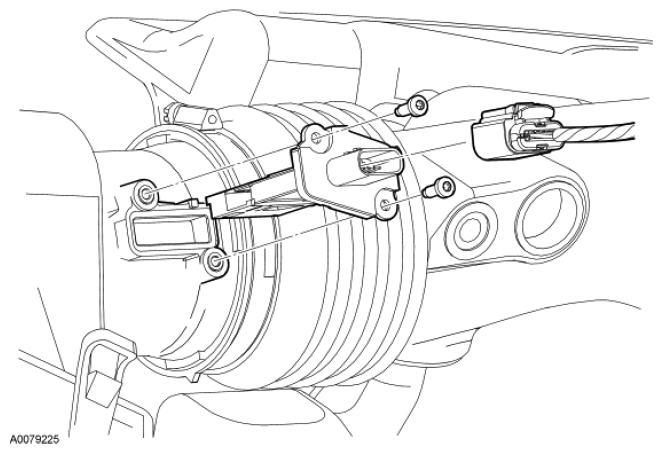

The MAF sensor is located near the air cleaner assembly. Most MAF sensors have an integrated IAT sensor.
