Electric Exhaust Gas Recirculation (EEGR) System: Overview
The EEGR system uses exhaust gas recirculation to control the NO x emissions just like vacuum operated systems. The only difference is the way in which the exhaust gas is controlled.

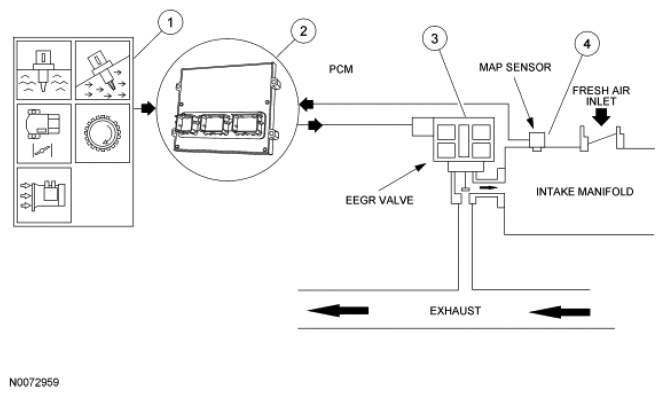

The EEGR system consists of an electric motor EGR valve integrated assembly, a PCM, and connecting wiring. Additionally a manifold absolute pressure (MAP) sensor is also required. For additional information on the EGR system components, refer to ENGINE CONTROL COMPONENTS . Operation of the system is as follows:
- The EEGR system receives signals from the ECT or CHT sensor, TP sensor, MAF sensor, CKP sensor, and the MAP sensor to provide information on engine operating conditions to the PCM. The engine must be warm, stable, and running at a moderate load and RPM before the EEGR system is activated. The PCM deactivates the EEGR during idle, extended WOT, or whenever a concern is detected in an EEGR component or EGR required input.
- The PCM calculates the desired amount of EGR for a given set of engine operating conditions.
- The PCM in turn outputs signals to control the EEGR motor to move (advance or retract) a calibrated number of discrete steps. The electric stepper motor directly actuates the EEGR valve, independent of engine vacuum. The EEGR valve is commanded from 0 to 52 discrete steps to get the EGR valve from a fully closed to a fully open position. The position of the EGR valve determines the EGR flow.
- A MAP sensor measures variations in manifold pressure as exhaust gas recirculation is introduced into the intake manifold. Variations in EGR being used correlate to the MAP signal (increasing EGR increases manifold pressure values).
