Selector Lever Bezel: Notes

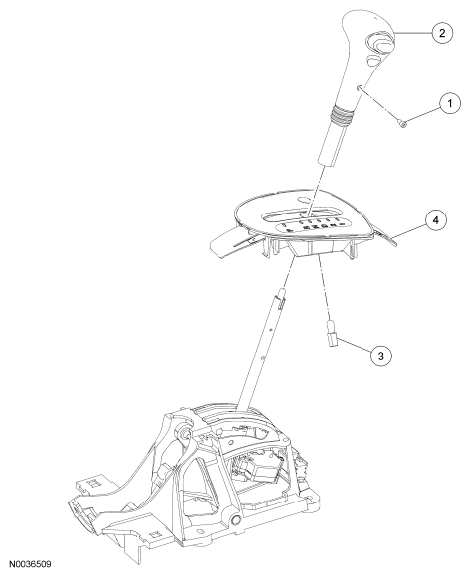

Fig 1: Exploded View Of Selector Lever Bezel
G06293335Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7348 Selector lever knob screw
2 7213 Selector lever knob
3 - Selector lever light
4 7A213 Selector lever bezel
