Air Register: Service and Repair

Register

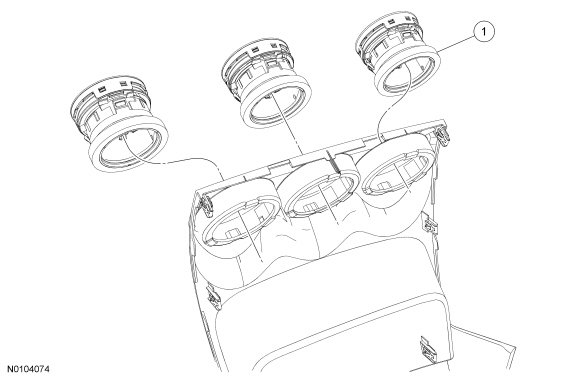

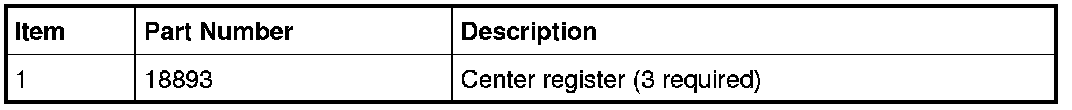

Center Registers

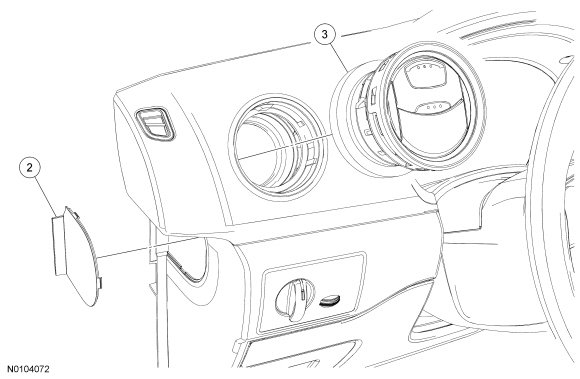

LH Register

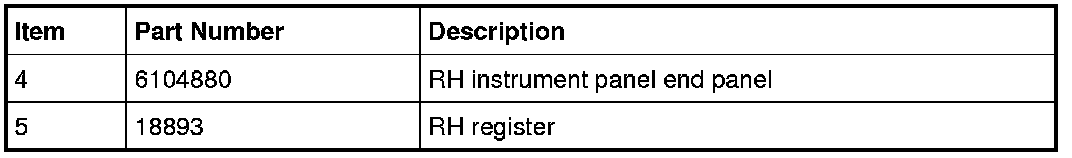

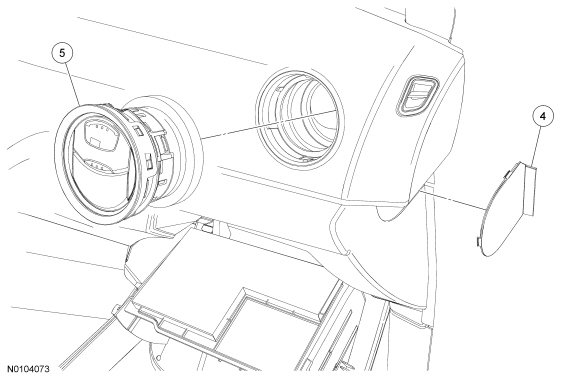

RH Register









Removal and Installation

Center register

1. Remove the upper center instrument panel finish panel.

LH register

2. Remove the LH instrument panel end panel.

RH register

3. Lower the glove compartment.

4. Remove the RH instrument panel end panel.

All registers

5. Release the 3 register retaining tabs and push the register out of the register opening.

6. To install, reverse the removal procedure.
