Blower Motor Resistor: Service and Repair

Blower Motor Resistor









Removal and Installation

1. Lower the glove compartment.

2. Disconnect the blower motor resistor electrical connector.

3. Remove the blower motor resistor.

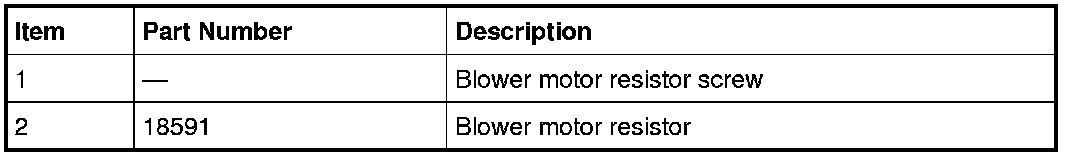

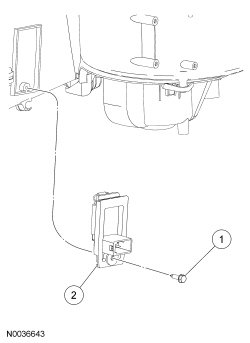

1. Disconnect the blower motor resistor electrical connector.

2. Remove the blower motor resistor screw.

3. Detach and remove the blower motor resistor.






4. To install, reverse the removal procedure.
