Blower Motor Switch: Service and Repair

Blower Motor Switch









Removal and Installation

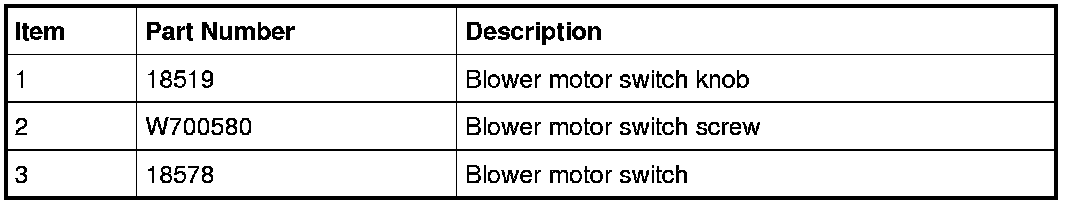

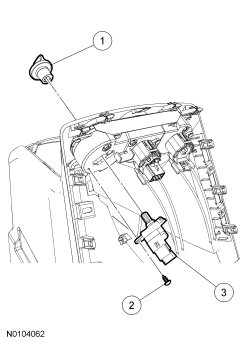

1. Remove the floor console.

2. Remove the blower motor switch knob.

3. Remove the blower motor switch screw.

4. Rotate the blower motor switch to disengage it from the climate control assembly and remove the blower motor switch.

5. To install, reverse the removal procedure.
