Customer Satisfaction Program 13B07 - Fuel Economy Improvement - Powertrain Control Module Calibration (13B07)
Publication date: 2013-07-25Reference number: 13B07
CUSTOMER SATISFACTION PROGRAM 13B07 - FUEL ECONOMY IMPROVEMENT - POWERTRAIN CONTROL MODULE CALIBRATION
SERVICE CAMPAIGN BULLETIN
| FORD: | 2013 Model Year C-MAX, Fusion Hybrid |
| LINCOLN: | 2013 Model Year MKZ Hybrid |
CUSTOMER SATISFACTION PROGRAM 13B07
SUBJECT
Customer Satisfaction Program 13B07
Certain 2013 Model Year C-MAX, Fusion, and MKZ Hybrid Vehicles
Fuel Economy Improvement - Powertrain Control Module Calibration
PROGRAM TERMS
This program will be in effect through August 31, 2014. There is no mileage limit for this program.
AFFECTED VEHICLES
| Assembly Plant | Year and Model | Build Dates |
|---|---|---|
| Michigan Assembly Plant | 2013 C-MAX | Job #1 through July 8, 2013 |
| Hermosillo Assembly Plant | 2013 Fusion | Job #1 through July 16, 2013 |
| Hermosillo Assembly Plant | 2013 MKZ | Job #1 through July 16, 2013 |
Affected vehicles are identified in OASIS. In addition, for a list of vehicles assigned to your dealership, visit https://web.fsavinlists.dealerconnection.com. This information will be available on July 25, 2013.
REASON FOR THIS PROGRAM
An improved Powertrain Control Module calibration is now available that will reduce the amount of gasoline engine running time under certain driving conditions, thus reducing fuel consumption. Calibration updates include control system enhancements for a variety of driving conditions on the highway, during short trips, and while using the climate control system. Enhancements designed to improve customer satisfaction include:
- Increasing the maximum pure electric speed to 85 mph from 62 mph, allowing increased use of electric-only mode on the highway
- Optimizing the use of Active Grille Shutters to reduce aerodynamic drag under more driving and temperature conditions including cold weather, during air conditioner use, and when the engine coolant temperature is higher
- Reducing the electric fan speed as a function of coolant temperature to minimize the fan's energy consumption
- Shortening engine warm-up time to enable electric-only driving and engine shutdown at stops sooner after cold starts
- Optimizing the climate control system to minimize use of the air conditioning compressor and reduce the energy used in cold weather operation
The resulting fuel economy improvements associated with these calibration changes are dependent upon the conditions in which the owner operates the vehicle.
SERVICE ACTION
Dealers are to reprogram the Powertrain Control Module (PCM) to the latest IDS software level. This service must be performed on all affected vehicles at no charge to the vehicle owner.
OWNER NOTIFICATION MAILING SCHEDULE
Owner Letters are expected to be mailed in early August, 2013. Dealers should repair any affected vehicles that arrive at their dealerships, whether or not the customer has received a letter.
ATTACHMENTS
- Attachment I: Administrative Information
- Attachment II: Labor Allowances and Parts Ordering Information
- Attachment III: Technical Information

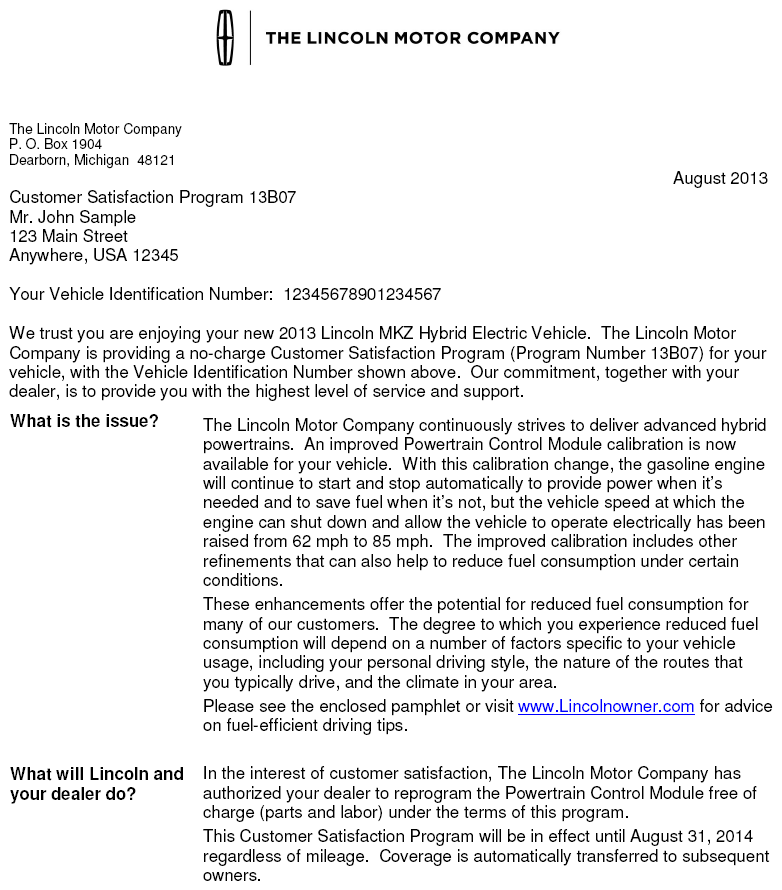

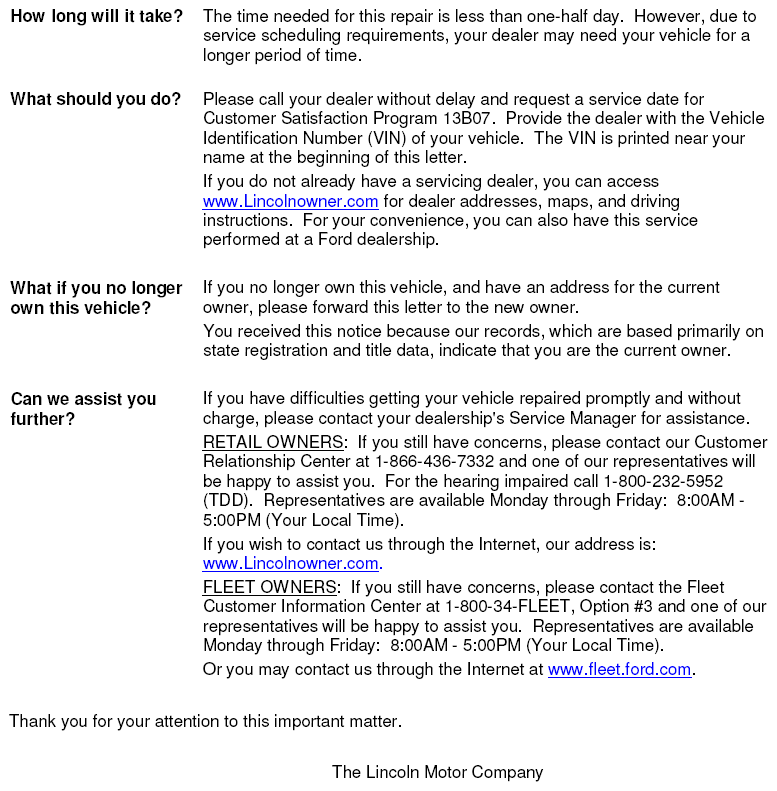

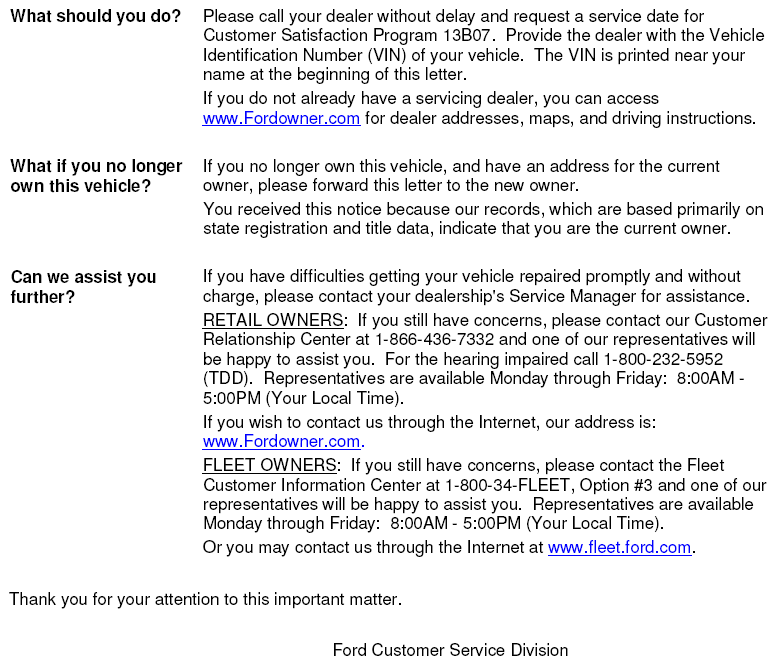

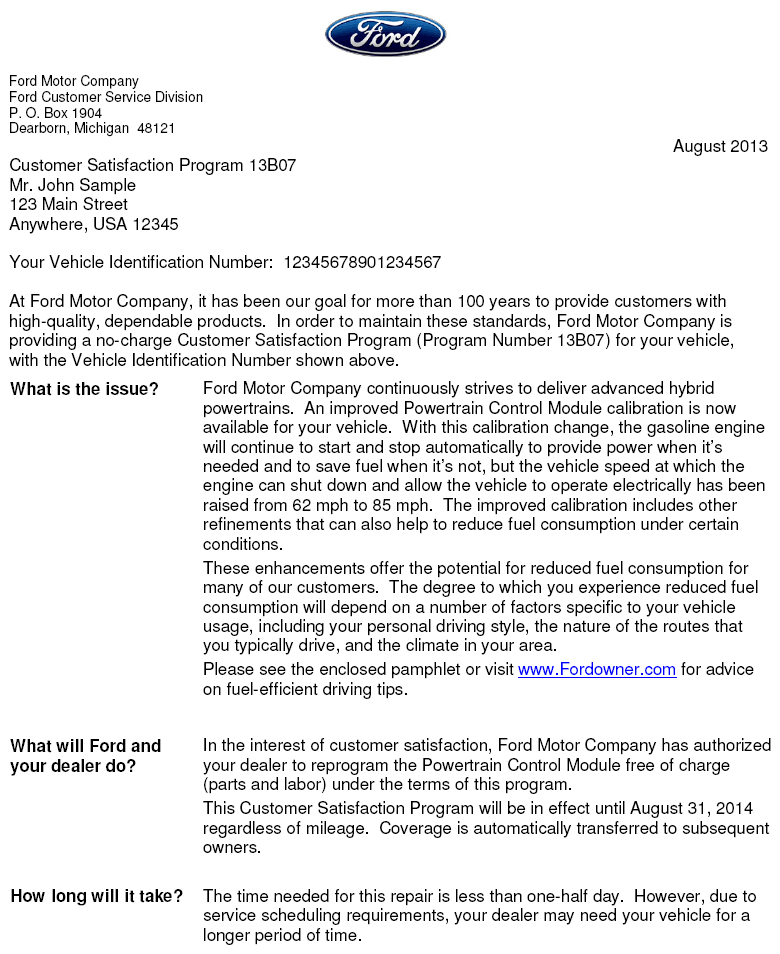

- Owner Notification Letters

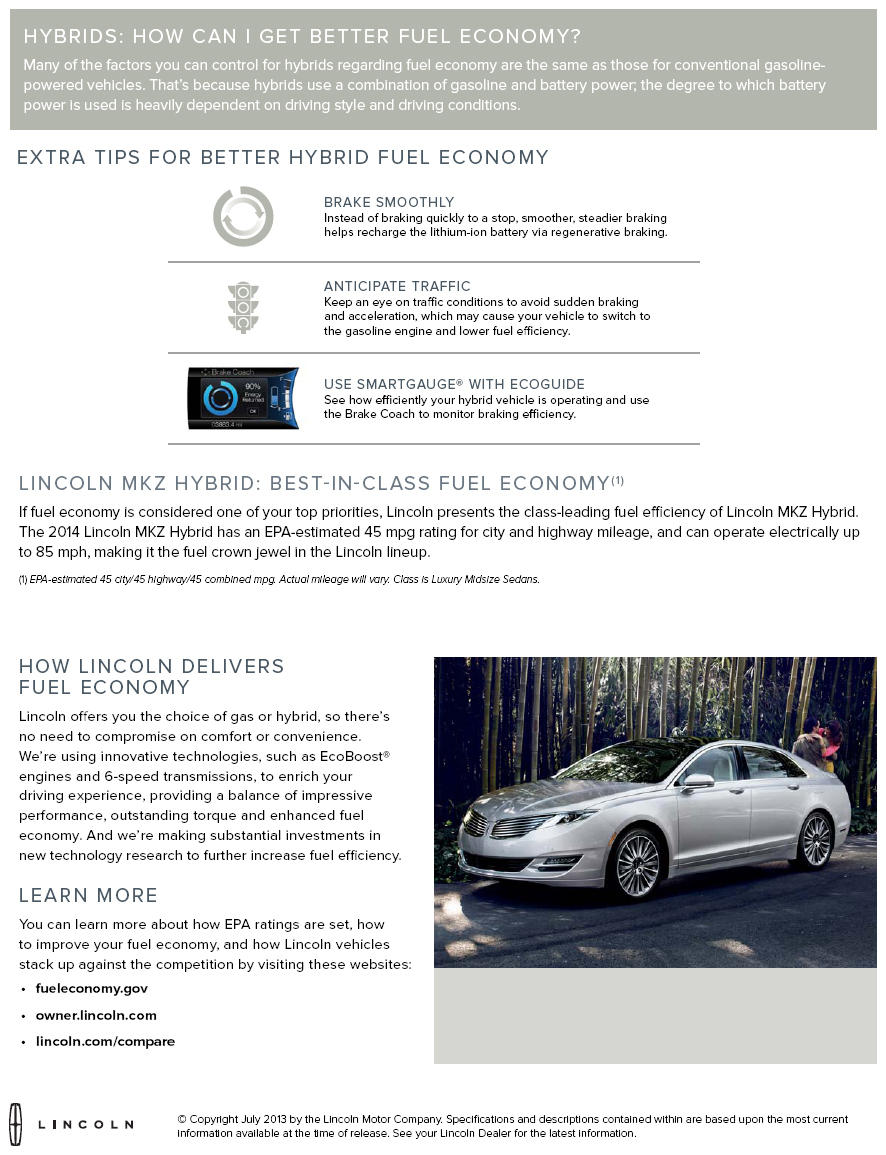

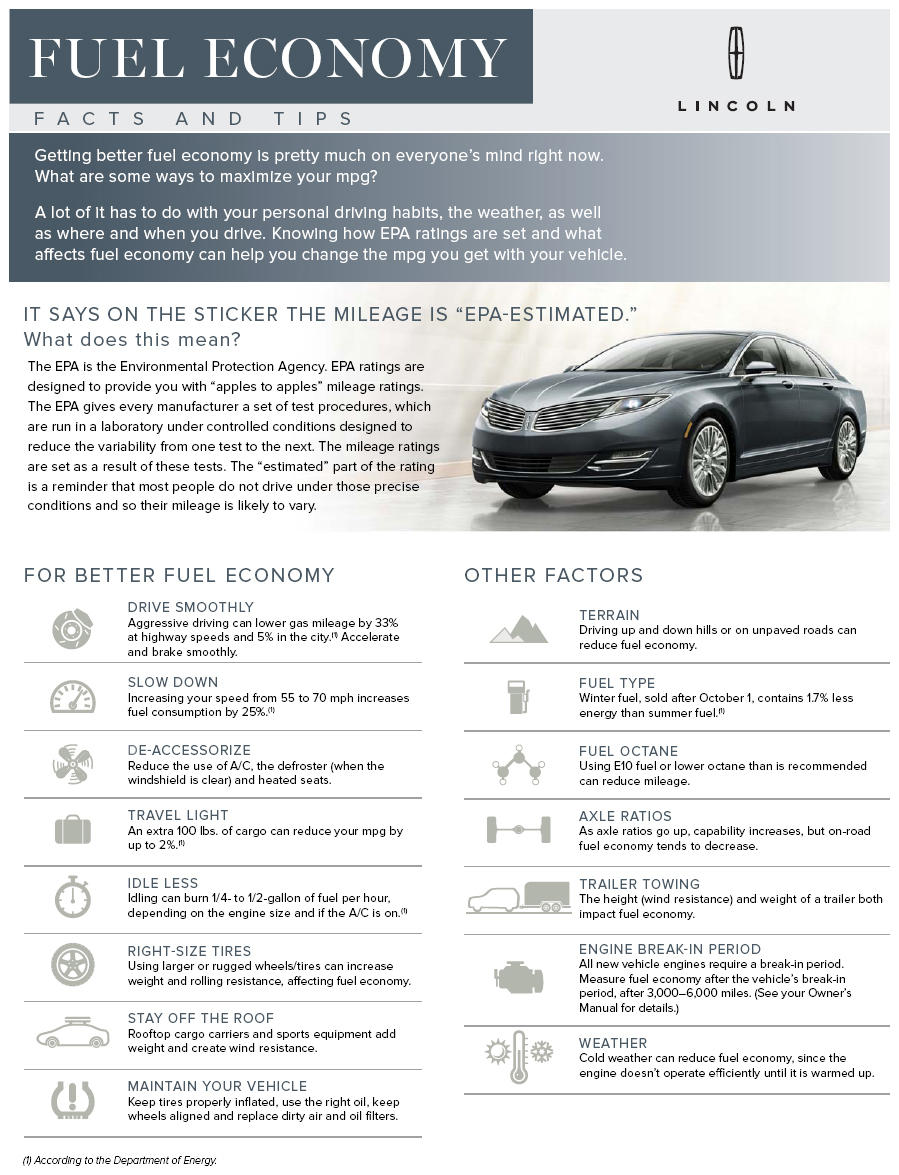

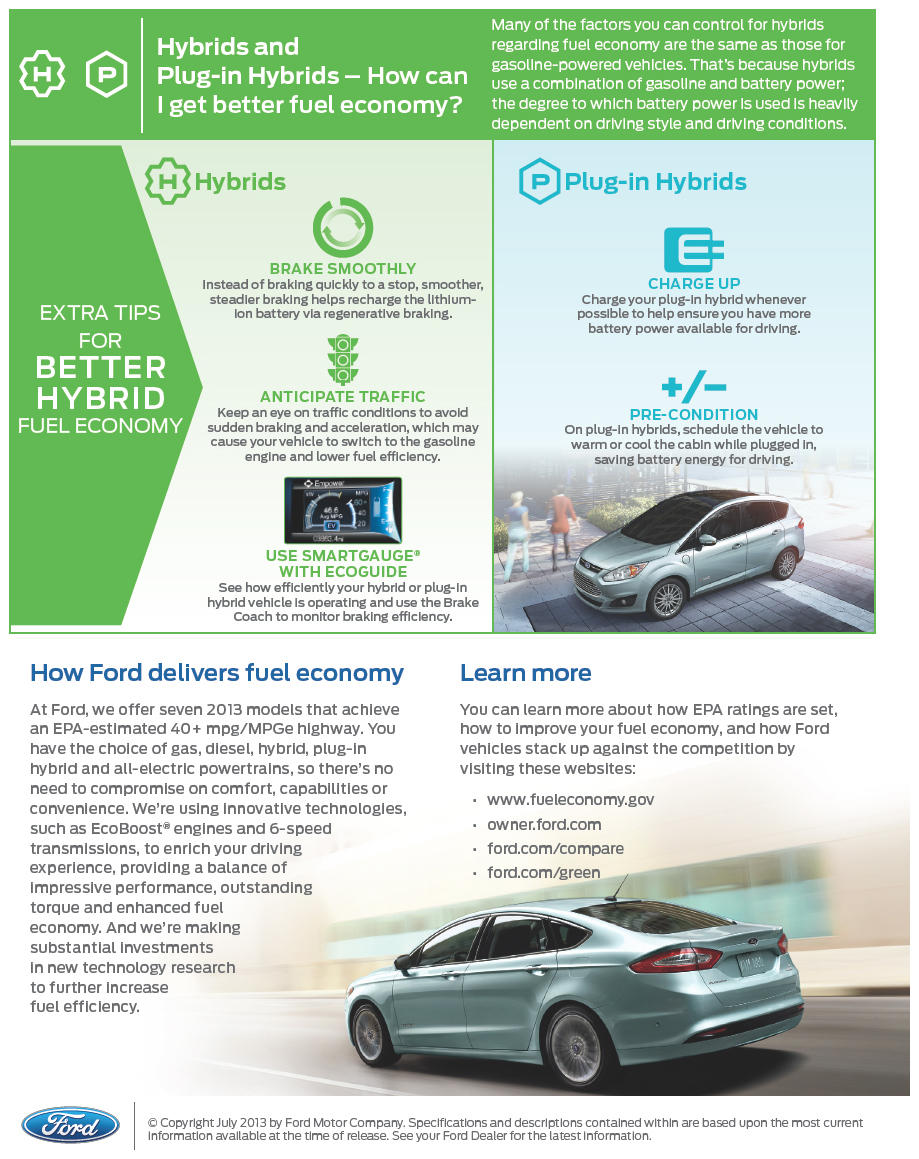

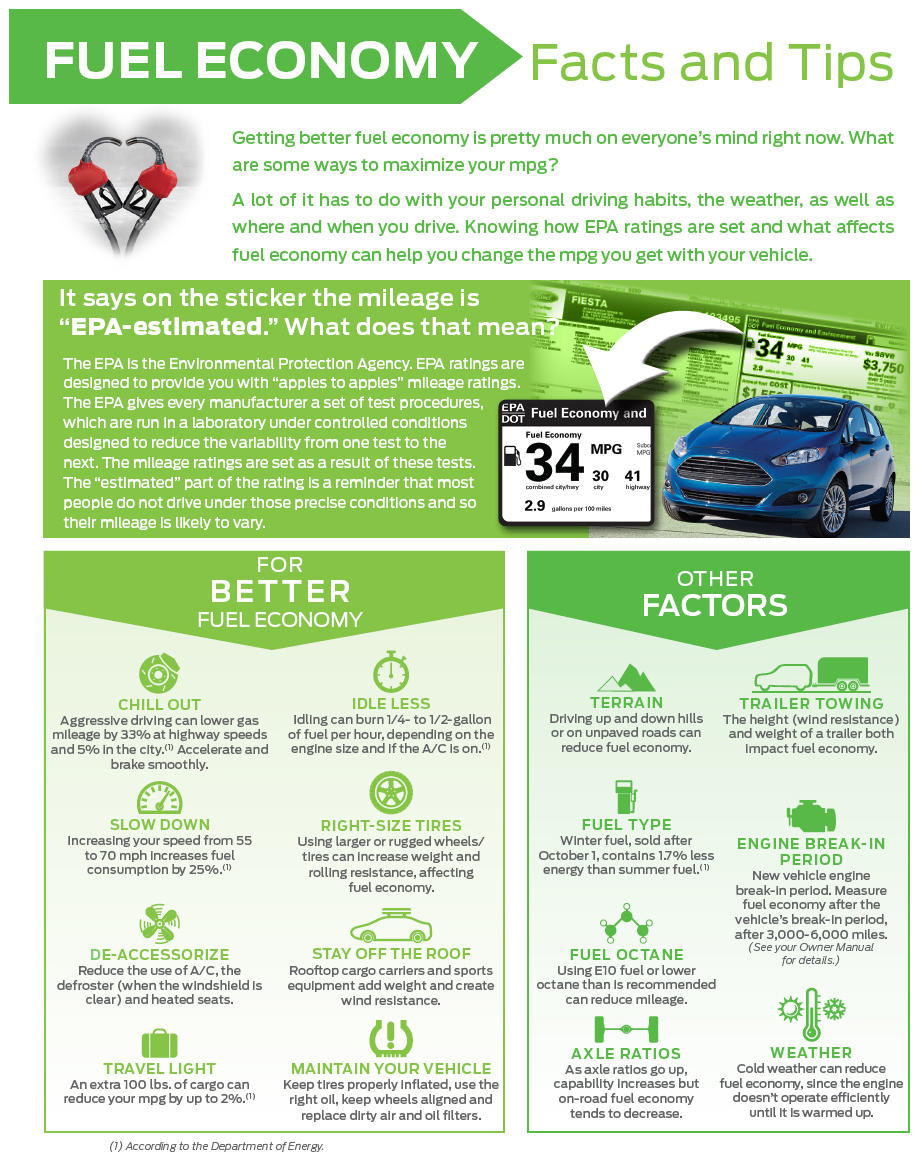

- Fuel Economy Facts and Tips Pamphlet
QUESTIONS & ASSISTANCE
Special Service Support Center (Dealer Assistance Only) ... 1-800-325-5621
ATTACHMENT I
Customer Satisfaction Program 13B07
Certain 2013 Model Year C-MAX, Fusion, and MKZ Hybrid Vehicles
Fuel Economy Improvement - Powertrain Control Module Calibration
OASIS ACTIVATED?
Yes, OASIS will be activated on July 25, 2013.
FSA VIN LIST ACTIVATED?
Yes, FSA VIN list will be available through https://web.fsavinlists.dealerconnection.com on July 25, 2013. Owner names and addresses will be available in mid-August, 2013.
STOCK VEHICLES
- Correct all affected units in your new vehicle inventory before delivery.
- Use OASIS to identify any affected vehicles in your used vehicle inventory.
SOLD VEHICLES
- Owners of affected vehicles will be directed to dealers for repairs.
- Immediately contact any of your affected customers whose vehicles are not on your VIN list but are identified in OASIS. Give the customer a copy of the Owner Notification Letter and schedule a service date.
- Correct other affected vehicles identified in OASIS which are brought to your dealership.
TITLE BRANDED/SALVAGED VEHICLES
Affected title branded and salvaged vehicles are eligible for this service action.
RELATED DAMAGE
If a related damage condition exists that you believe to be caused by the covered condition, call the Special Service Support Center to request approval prior to the repair of any related damage. Requests for approval after completion of the repair will not be granted. Ford Motor Company reserves the right to deny coverage for related damage in cases where the vehicle owner has not had this service action performed on a timely basis.
ADDITIONAL LABOR TIME
- If a condition exists that requires additional labor to complete the repair, call the Special Service Support Center to request approval prior to performing any additional labor. Requests for approval after completion of the repair will not be granted.
- If you encounter aftermarket equipment or modifications to the vehicle which might prevent the repair of the covered condition, call the Special Service Support Center.
OWNER REFUNDS
Refunds are not authorized for this program.
RENTAL VEHICLES
The use of rental vehicles is not authorized for this program.
CLAIMS PREPARATION AND SUBMISSION
- Enter claims using Direct Warranty Entry (DWE).
- Refer to ACESII manual for claims preparation and submission information.
- Related damage must be claimed on a repair line that is separate from the repair line on which the FSA is claimed. Related damage requires prior approval from the Special Service Support Center.
- "MT" labor should be submitted on a separate repair line with the related damage flag checked. "MT" labor requires prior approval from the Special Service Support Center.
- PROGRAM TERMS: This program will be in effect through August 31, 2014. There is no mileage limit for this program.
ATTACHMENT II
Customer Satisfaction Program 13B07
Certain 2013 Model Year C-MAX, Fusion, and MKZ Hybrid Vehicles
Fuel Economy Improvement - Powertrain Control Module Calibration
LABOR ALLOWANCES
| Description | Labor Operation | Labor Time |
|---|---|---|
| Reprogram The Powertrain Control Module | 13B07B | 0.5 Hour(s) |
PARTS REQUIREMENTS/ORDERING INFORMATION
Parts are not required to complete this repair.
DEALER PRICE
For latest prices, refer to DOES II.
PARTS RETENTION AND RETURN
Follow the provisions of the Warranty and Policy Manual, Section 1 "WARRANTY PARTS RETENTION AND RETURN POLICIES."
ATTACHMENT III
CUSTOMER SATISFACTION PROGRAM 13B07
CERTAIN 2013 MODEL YEAR C-MAX, FUSION, AND MKZ HYBRID VEHICLES - FUEL ECONOMY IMPROVEMENT - POWERTRAIN CONTROL MODULE CALIBRATION
OVERVIEW
An improved Hybrid Powertrain Control Module calibration is now available that will allow the gasoline engine to reduce the amount of running time under certain driving conditions, thus reducing fuel consumption. Dealers are to reprogram the Powertrain Control Module (PCM) to the latest software level using IDS version 85.05 or higher.
SERVICE PROCEDURE
Important Information for Module Programming
- Make sure the 12v battery is fully charged before carrying out the programming steps and connect IDS/scan tool to a power source.
- Inspect Vehicle Communication Module (VCM) and cables for any damage. Make sure scan tool connections are not interrupted during programming.
- A hardwired internet connection is strongly recommended.
- Turn off all unnecessary accessories (radio, heated/cooled seats, head lamps, interior lamps, HVAC system, etc.) and close doors.
- Disconnect/depower any aftermarket accessories (remote start, alarm, power inverter, CB radio, etc.).
- Follow all scan tool on-screen instructions carefully.
- Disable IDS/scan tool sleep mode, screensaver, hibernation modes.
- Create all sessions Key On Engine Off (KOEO). Starting the vehicle before creating a session will cause errors within the programming inhale process.
Module Reprogramming
- Reprogram the Powertrain Control Module (PCM) using IDS release 85.05 or higher.
Recovering A Module When Programming Has Resulted In A Blank Module: NEVER DELETE THE ORIGINAL SESSION!
- Obtain the original IDS that was used when the programming error occurred during Module Reprogramming (MR) or Programmable Module Installation (PMI).
- Disconnect the VCM from the data link connector (DLC) and the IDS.
- Reconnect the VCM to IDS and then connect to the DLC. Once reconnected, the VCM icon should appear in the corner of the IDS screen. If it does not, troubleshoot the IDS to VCM connection.
- Locate the ORIGINAL vehicle session when programming failed. This should be the last session used in most cases. If not, use the session created on the date that the programming failed.NOTE: If the original session is not listed in the previous session list, click the "Recycle Bin" icon at the lower right of the previous session screen. This loads any deleted sessions and allows you to look through them. Double-click the session to restore it.
- Once the session is loaded, the failed process should resume automatically.
- If programming does not resume automatically, proceed to the module Programming menu and select the previously attempted process, PMI or MR.
- Follow all on-screen prompts/instructions.
- Near the end of programming, the IDS prompts you to select certain parameters. It is important to make a selection for ALL parameters listed. If the correct selection is already highlighted, you must still choose that selection before clicking the "Tick" mark to complete the configuration.
- The last screen on the IDS may list additional steps required to complete the programming process. Make sure all applicable steps listed on the screen are followed in order.
