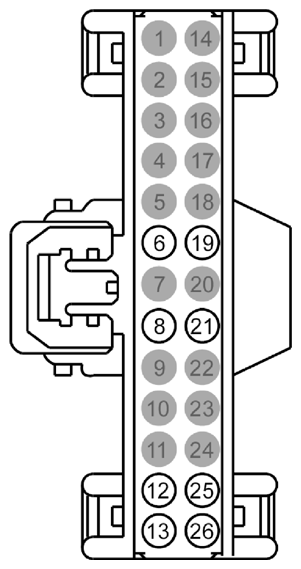

Audio Control Module (ACM) Connector End View (C240B)

Fig 1: Identifying Audio Control Module (ACM) Connector (C240B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	VME58 (YE-VT)	22	CTRL MOD. - AUDIO # OUTPUT LEFT 2 +
7	*	*	Not Used
8	VME80 (VT-GN)	20	CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+)
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	VME52 (BU)	20	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT +
13	VME53 (VT-GN)	20	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT +
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	VME59 (YE-OG)	22	CTRL MOD. - AUDIO # OUTPUT RIGHT 2 +
20	*	*	Not Used
21	RME80 (BU-GY)	20	CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-)
22	*	*	Not Used
23	*	*	Not Used
24	*	*	Not Used
25	RME52 (GY-OG)	20	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT -
26	RME53 (BN-WH)	20	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT -
