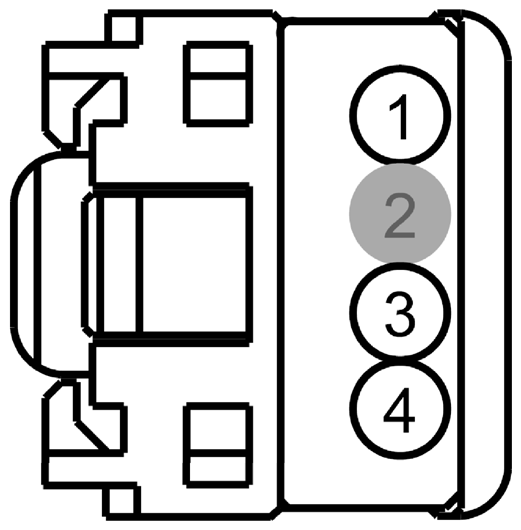

Audio Input Socket Connector End View (C3312)

Fig 1: Identifying Audio Input Socket Connector (C3312)

G09217858

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME38 (BN-RD)	22	CTRL MOD. - AUDIO # EXT. AUX IN R
2	*	*	Not Used
3	RME45 (YE-GN)	22	JACK - AUDIO # EXT. AUX IN LEFT (-)
4	VME37 (BU-RD)	22	CTRL MOD. - AUDIO # EXT. AUX IN L

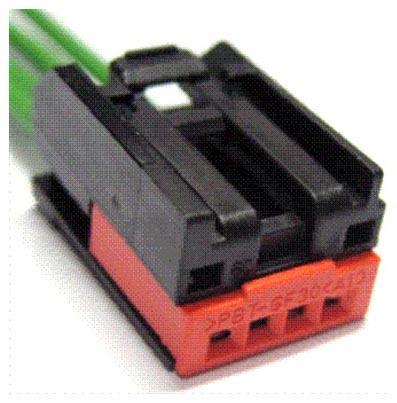

Available Pigtail Kits

Pigtail Kit Part Number WPT-1139

G09217859

Service Part Number: 3U2Z-14S411-PRC
Gauge: 18
Pin material: Silver
Cavities: 4
Vehicle Uses

Connector - Audio Input
Lamp - CHMSL (Center High Mount Stop Lamp)
Module - Anti-theft
Module - Power Moonroof
Sensor - Steering Wheel Position
Switch - 4x4 Control
Switch - Clutch Pedal Position
Switch - Deck Lid/Lift Gate Ajar
Switch - Door Lock (LH)
Switch - Door Lock (RH)
Switch - Lift Gate Glass Ajar
Switch - Message Center
Switch - Moon Roof/Sun Roof
Transceiver - Passive Anti-Theft (PATS)
