Blower Motor Control Module Connector End View (C297A)

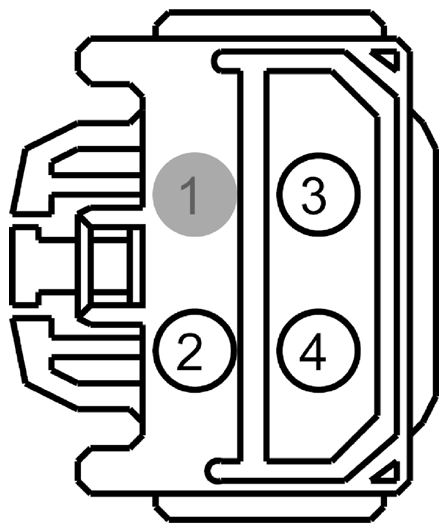

Fig 1: Identifying Blower Motor Control Module Connector (C297A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	GD138 (BK-WH)	10	GROUND - COWL SIDE/PILLAR A RIGHT (6L2T)
3	VH101 (WH-VT)	20	CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL
4	CBP18 (GY-OG)	10	FUSE - 18 OR CIRCUIT BREAKER

Available Pigtail Kits

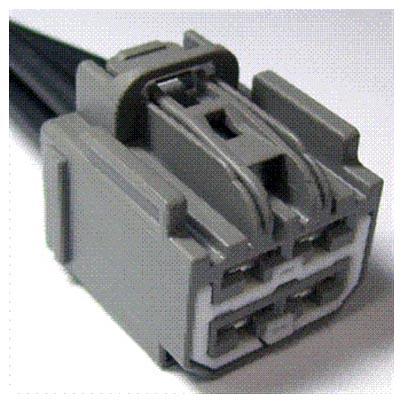

Pigtail Kit Part Number WPT-1177	Service Part Number: AU2Z-14S411-BHA  Gauge: 10  Pin material: Tin  Cavities: 4  Vehicle Uses Resistor - Blower Motor (Front) Switch - Heater/A/C Blower (Front)
