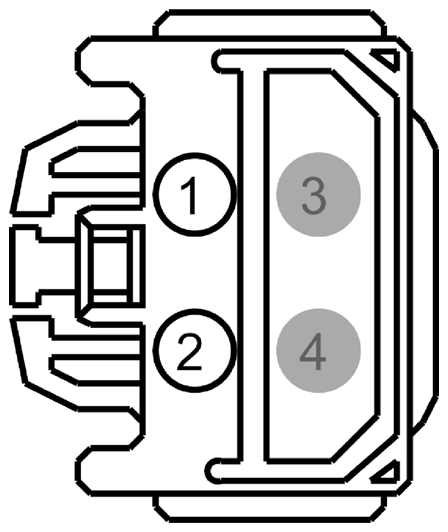

Blower Motor Control Module Connector End View (C297B)

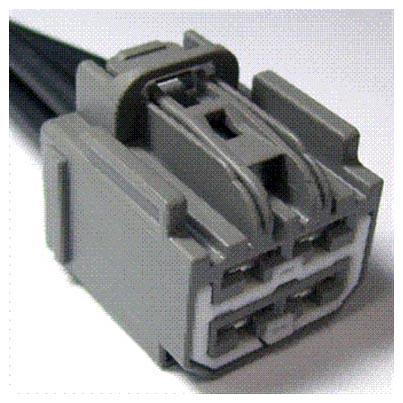

Fig 1: Identifying Blower Motor Control Module Connector (C297B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (*)	*	BLOWER MOTOR DRIVER	DATC
2	* (*)	*	BLOWER MOTOR RETURN	DATC
3	*	*	Not Used
4	*	*	Not Used

Available Pigtail Kits
Pigtail Kit Part Number WPT-1177	Service Part Number: AU2Z-14S411-BHA  Gauge: 10  Pin material: Tin  Cavities: 4  Vehicle Uses Resistor - Blower Motor (Front) Switch - Heater/A/C Blower (Front)
