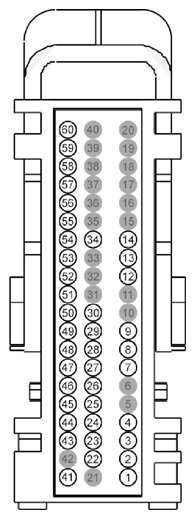

| 1 |
CLN38 (BU-WH) |
20 |
CTRL MOD. - FOOTWELL (STEP IN) LAMP LEFT |
|
| 2 |
CRD04 (BN-GN) |
22 |
INDICATOR - HEATER REAR WINDOW |
|
| 3 |
VMC34 (WH) |
22 |
CTRL MOD. - STEERING WHEEL MODULE LIN BUS |
|
| 4 |
VLF25 (GN-VT) |
22 |
CTRL MOD. - LIGHT SWITCH LIN BUS |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
| 8 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
| 9 |
VH406 (VT-BN) |
22 |
SENSOR - A/C EVAPORATOR TEMPERATURE (ACET) |
|
| 10 |
* |
* |
Not Used |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
CLN17 (BN) |
20 |
SWITCH - IP/SWITCH ILLUMINATION |
|
| 13 |
CPLXXC (WH-YE) |
20 |
CENTRAL LOCK SWITCH INDICATOR |
|
| 13 |
CPLXXCB (WH-YE) |
20 |
CENTRAL LOCK SWITCH INDICATOR |
|
| 14 |
CLN17 (BN) |
22 |
SWITCH - IP/SWITCH ILLUMINATION |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
CBP27 (GN-BN) |
20 |
FUSE - 27 OR CIRCUIT BREAKER |
|
| 23 |
VH414 (GN-BU) |
22 |
SENSOR - INCAR TEMP. |
|
| 24 |
VMP19 (WH-GN) |
22 |
CAMERA - PARKING AID REAR VIDEO + |
|
| 25 |
CMC25 (WH-VT) |
22 |
SWITCH - PARKING BRAKE |
|
| 26 |
CPL43 (VT-GY) |
20 |
SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK |
|
| 27 |
CLS32 (BN-YE) |
22 |
SWITCH - HAZARD |
|
| 28 |
CBP27 (RD) |
20 |
FUSE - 27 OR CIRCUIT BREAKER |
|
| 29 |
RH107 (BK-WH) |
22 |
CTRL MOD. - AMBIENT TEMP. SENSOR |
|
| 30 |
GD133 (BK) |
22 |
GROUND - COWL SIDE/PILLAR A LEFT (6L2T) |
|
| 31 |
* |
* |
Not Used |
|
| 32 |
* |
* |
Not Used |
|
| 33 |
* |
* |
Not Used |
|
| 34 |
VRT23 (VT-GY) |
22 |
TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # RX DATA (RX_IN) |
|
| 35 |
* |
* |
Not Used |
|
| 36 |
* |
* |
Not Used |
|
| 37 |
* |
* |
Not Used |
|
| 38 |
* |
* |
Not Used |
|
| 39 |
* |
* |
Not Used |
|
| 40 |
* |
* |
Not Used |
|
| 41 |
CET52 (GN) |
20 |
SWITCH - TRANSMISSION PARK DETECT |
|
| 42 |
* |
* |
Not Used |
|
| 43 |
CDC32 (BN-YE) |
20 |
SWITCH - IGNITION # RUN |
|
| 44 |
CDC33 (VT-GN) |
22 |
SWITCH - IGNITION # RUN; ACCESSORY |
|
| 45 |
CRD09 (BU-GY) |
22 |
SWITCH - HEATER REAR WINDOW |
|
| 46 |
CDC30 (BU-GY) |
22 |
SWITCH - IGNITION # KEY IN |
|
| 47 |
CRW10 (BU-GN) |
22 |
SWITCH - FRONT WIPER LOW |
|
| 48 |
* |
* |
Not Used |
|
| 49 |
* |
* |
Not Used |
|
| 50 |
CRH03 (BN) |
22 |
CTRL MOD. - STEERING WHEEL # HORN |
|
| 51 |
VE225 (YE-OG) |
20 |
CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) |
|
| 52 |
* |
* |
Not Used |
|
| 53 |
* |
* |
Not Used |
|
| 54 |
VRT24 (YE-OG) |
22 |
TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # TX CNTRL |
|
| 55 |
* |
* |
Not Used |
|
| 56 |
* |
* |
Not Used |
|
| 57 |
* |
* |
Not Used |
|
| 58 |
* |
* |
Not Used |
|
| 59 |
* |
* |
Not Used |
|
| 60 |
* |
* |
Not Used |
|
