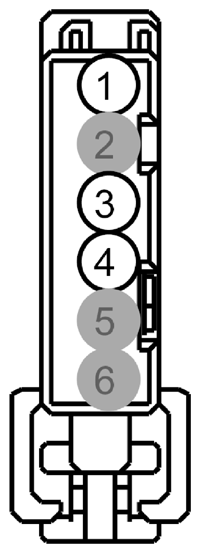

Dc/Dc Converter Module Connector End View (C4453A)

Fig 1: Identifying DC/DC Converter Module Connector (C4453A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CYD14 (GN-BN)	22	DC/DC WAKEUP
2	*	*	Not Used
3	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
4	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
5	*	*	Not Used
6	*	*	Not Used

Available Pigtail Kits

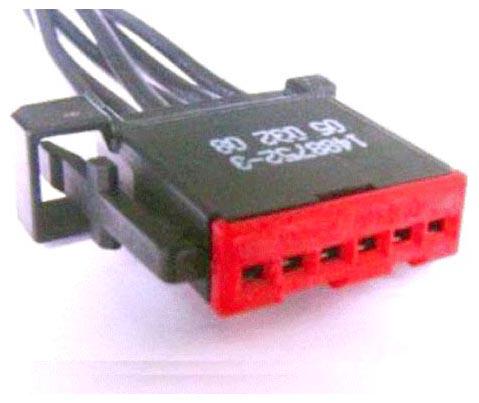

Pigtail Kit Part Number WPT-873	Service Part Number: 6U2Z-14S411-LA  Gauge: 20  Pin material: Tin  Cavities: 6  Vehicle Uses Mirror - Sideview Sensor - Throttle Position Switch - A/C Compressor Clutch Cycling

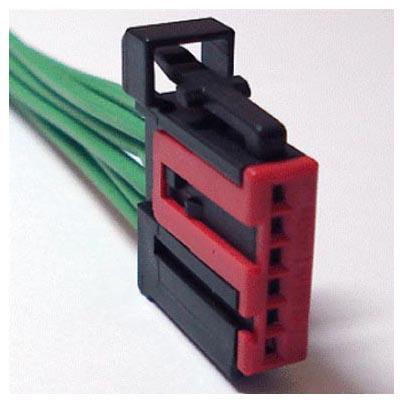

Pigtail Kit Part Number WPT-958	Service Part Number: 6U2Z-14S411-LB  Gauge: 18 20  Pin material: Tin & Silver  Cavities: 6  Vehicle Uses Antenna - GPS Module - Global Positioning
