Dc/Dc Converter Module Connector End View (C4453B)

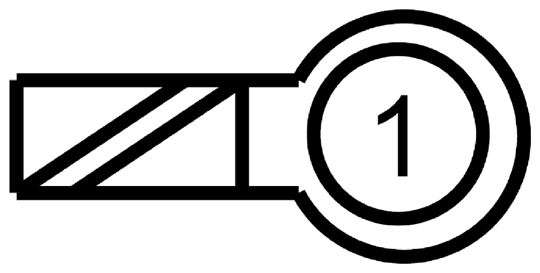

Fig 1: Identifying DC/DC Converter Module Connector (C4453B)
G09217960Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 HYT01 (OG) 2 HV BATT +
