Dc/Dc Converter Module Connector End View (C4453C)

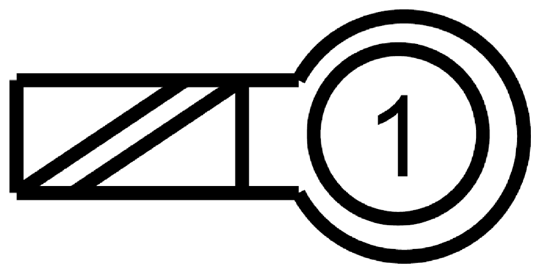

Fig 1: Identifying DC/DC Converter Module Connector (C4453C)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	HYT02 (OG)	2	HV BATT -
