Dc/Dc Converter Module Connector End View (C4453D)

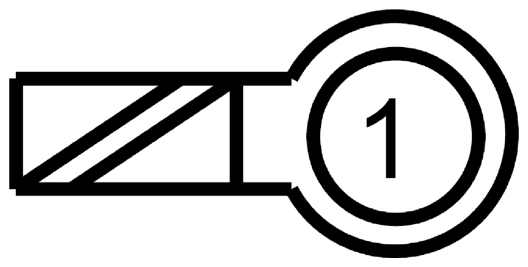

Fig 1: Identifying DC/DC Converter Module Connector (C4453D)
G09217962Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 CDC13 (RD) 22 VBATT
