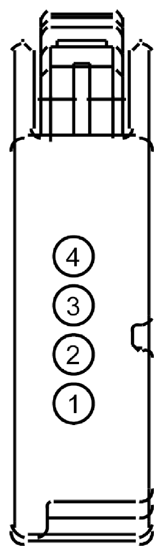

Driver Heated Seat Module Connector End View (C3191A)

Fig 1: Identifying Driver Heated Seat Module Connector (C3191A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD903 (BK-WH)	16	GROUND - PASSENGER SEAT # SEAT SWITCH
2	CHS29 (WH-BU)	20	SWITCH - SEAT HEATER FRONT DRIVER SIDE
3	SBX06 (GY-RD)	20	POWER - SEAT # HEATED SEAT MODULE
4	CBX01 (GN-RD)	16	POWER - SEAT # RUN/START

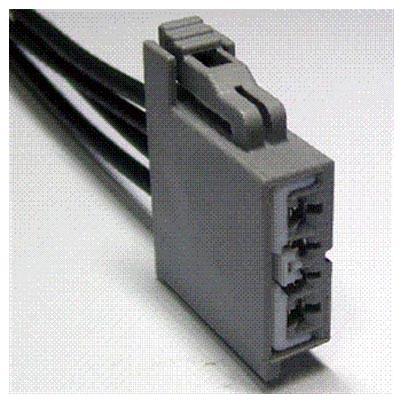

Available Pigtail Kits
Pigtail Kit Part Number WPT-1346	Service Part Number: DU2Z-14S411-MA  Gauge: 14 16  Pin material: Tin  Cavities: 4  Vehicle Uses Module - Heated Seat (driver)
