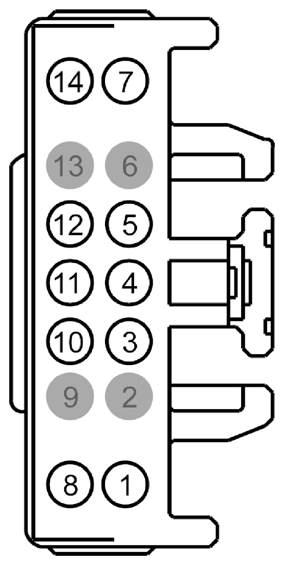

Rear Gate Trunk Module (RGTM) Connector End View (C4174A)

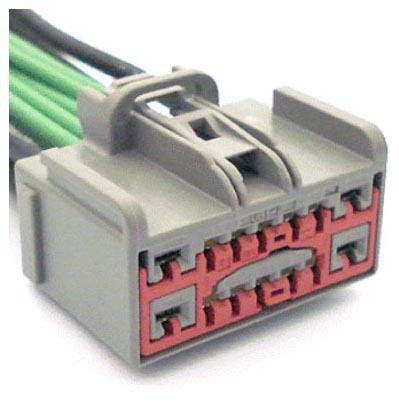

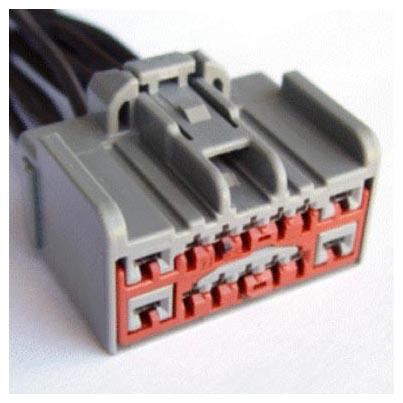

Fig 1: Identifying Rear Gate Trunk Module (RGTM) Connector (C4174A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB03 (RD)	14	FUSE - 3 OR CIRCUIT BREAKER
2	*	*	Not Used
3	CPR57 (GN-WH)	18	CTRL MOD. - POWER LIFTGATE # OPEN
4	CPR57 (*)	18	CTRL MOD. - POWER LIFTGATE # OPEN
5	CPR57 (YE-WH)	18	CTRL MOD. - POWER LIFTGATE # OPEN
6	*	*	Not Used
7	CPR71 (GY-BN)	14	CTRL MOD. - POWER LIFTGATE # MOTOR STRIKER (+)
8	GD150 (BK-WH)	14	GROUND - PILLAR D LEFT # 2ND POINT
9	*	*	Not Used
10	CPR58 (GN-OG)	18	CTRL MOD. - POWER LIFTGATE # CLOSE
11	CPR57 (*)	18	CTRL MOD. - POWER LIFTGATE # OPEN
12	CPR58 (YE-OG)	18	CTRL MOD. - POWER LIFTGATE # CLOSE
13	*	*	Not Used
14	CPR72 (GN-BU)	14	CTRL MOD. - POWER LIFTGATE # MOTOR STRIKER (-)

Available Pigtail Kits
Pigtail Kit Part Number WPT-741	Service Part Number: 3U2Z-14S411-BJAA  Gauge: 12 16  Pin material: Tin  Cavities: 14  Vehicle Uses Cigar Lighter Motor - Heater/AC Blower (Front)
Pigtail Kit Part Number WPT-955	Service Part Number: 3U2Z-14S411-BJAC  Gauge: 12 14 16  Pin material: Tin & Silver  Cavities: 14  Vehicle Uses Connector - Inline
