Remote Function Actuator (RFA) Module Connector End View (C4392A)

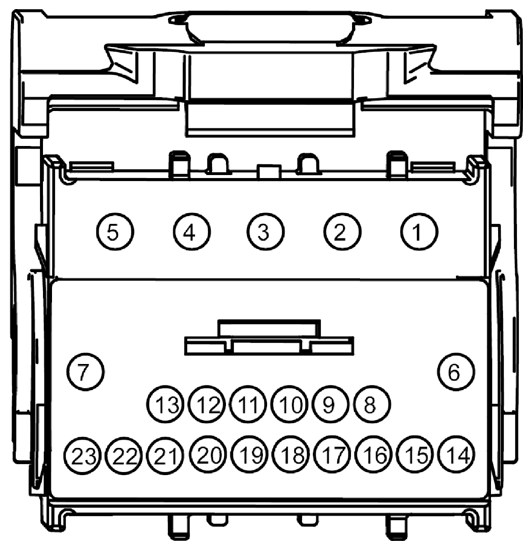

Fig 1: Identifying Remote Function Actuator (RFA) Module Connector (C4392A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	RPK08 (GN-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR -
3	RPK03 (GN-BN)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE REAR DRIVER SIDE -
4	VPK05 (BN-GN)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) +
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	VPK04 (BU-OG)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE REAR PASSENGER SIDE +
15	VPK03 (YE)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE REAR DRIVER SIDE +
16	RPK05 (YE-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) -
17	*	*	Not Used
18	*	*	Not Used
19	VPK08 (WH-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR +
20	*	*	Not Used
21	RPK07 (GN-OG)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK EXTERIOR -
22	VPK07 (VT)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK EXTERIOR +
23	RPK04 (VT-GY)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE REAR PASSENGER SIDE -
