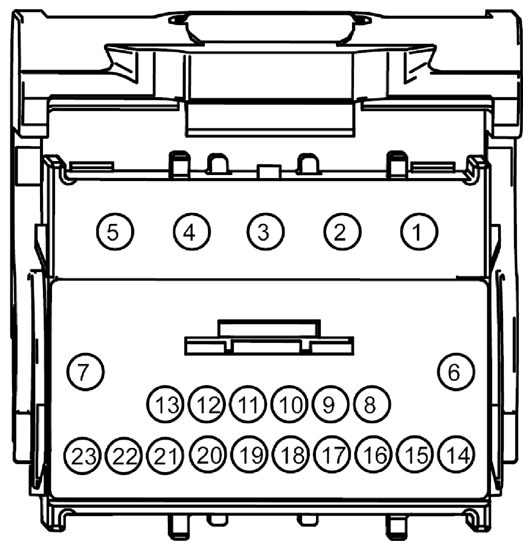

Remote Function Actuator (RFA) Module Connector End View (C4392D)

Fig 1: Identifying Remote Function Actuator (RFA) Module Connector (C4392D)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
4	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
5	CPL45 (BN)	22	SWITCH - LIFTGATE/DECKLID RELEASE
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	VPL56 (BU-GY)	22	RECEIVER - REMOTE RF
15	CBP27 (RD)	20	FUSE - 27 OR CIRCUIT BREAKER
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	*	*	Not Used
