Remote Function Actuator (RFA) Module Connector End View (C4392E)

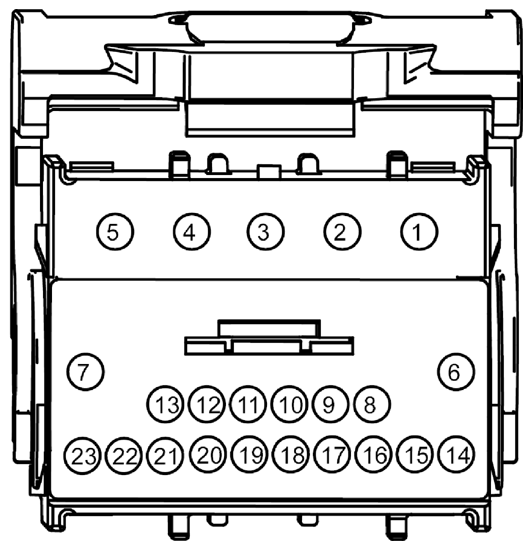

Fig 1: Identifying Remote Function Actuator (RFA) Module Connector (C4392E)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	CPK20 (BN-GN)	22	SWITCH - LOCK PASSENGER
3	*	*	Not Used
4	CPK25 (GN-OG)	22	SWITCH - HANDLE UNLOCK REAR DRIVER SIDE
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	CPL45 (BN)	22	SWITCH - LIFTGATE/DECKLID RELEASE
19	CPK19 (BU-GN)	22	SWITCH - LOCK DRIVER
20	CPK26 (BN-YE)	22	SWITCH - HANDLE UNLOCK REAR PASSENGER SIDE
21	CPK23 (YE-VT)	22	SWITCH - HANDLE UNLOCK DRIVER
22	CPK24 (BU-GY)	22	SWITCH - HANDLE UNLOCK PASSENGER
23	*	*	Not Used
