Front Control/Display Interface Module (FCDIM): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to HEALTH AND SAFETY PRECAUTIONS . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Upload the FCDIM  configuration information to the scan tool by following the scan tool on screen instructions.

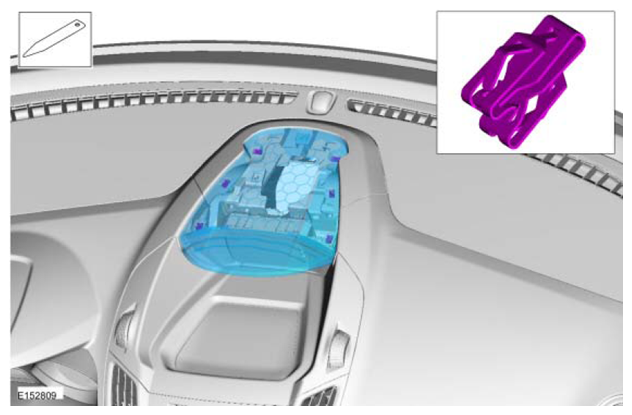

  3. G08409082Courtesy of FORD MOTOR CO.
  4. Torque  : 1.5 Nm

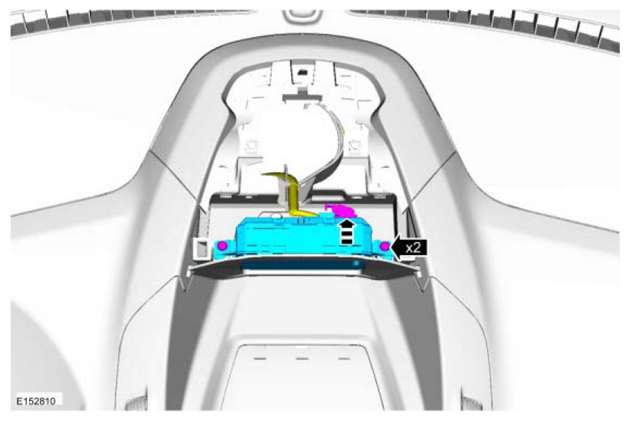

    G08409083Courtesy of FORD MOTOR CO.
