Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module (TCM) Connector End View (C1458A)

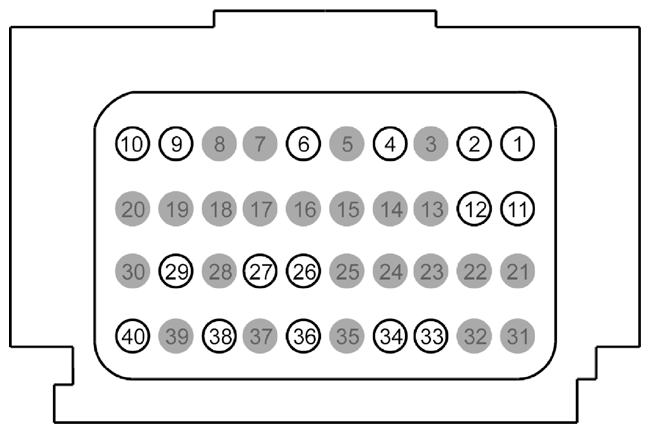

Fig 1: Identifying Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module Connector (C1458A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD123 (BK-GY) | 18 | GROUND - FENDER FRONT RIGHT | |
| 2 | GD123 (BK-GY) | 18 | GROUND - FENDER FRONT RIGHT | |
| 3 | * | * | Not Used | |
| 4 | VMC02 (BU-WH) | 20 | CTRL MOD. - POWERTRAIN # CLEAN TACHOMETER OUTPUT (CTO) | |
| 5 | * | * | Not Used | |
| 6 | SBB30 (YE-BU) | 20 | FUSE - 30 OR CIRCUIT BREAKER | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | CE322 (WH-BU) | 18 | CTRL MOD. - POWERTRAIN # POWER SUSTAIN RELAY (PSR) | |
| 10 | CE322 (WH-BU) | 18 | CTRL MOD. - POWERTRAIN # POWER SUSTAIN RELAY (PSR) | |
| 11 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 12 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used | |
| 25 | * | * | Not Used | |
| 26 | CHP01 (BU) | 20 | CTRL MOD. - PTC HEATER # HEATER | |
| 27 | VYT31 (GN-VT) | 20 | SWITCH - HYBRID POWERTRAIN MODE CONTROL + | |
| 28 | * | * | Not Used | |
| 29 | CE341 (VT-GY) | 20 | CTRL MOD. - POWERTRAIN # IGNITION SWITCH POSITION RUN (ISP-R) | |
| 30 | * | * | Not Used | |
| 31 | * | * | Not Used | |
| 32 | * | * | Not Used | |
| 33 | VYT12 (YE-GN) | 20 | PUMP - TRANSMISSION AUXILIARY # DIAGNOSTIC (TAPR_DI) | |
| 34 | VYT11 (VT-GN) | 20 | CTRL MOD. - TRANSMISSION AUXILIARY PUMP PWM CONTROL (TAPR_CT) | |
| 35 | * | * | Not Used | |
| 36 | CYT14 (VT-OG) | 18 | CTRL MOD. - RELAY MOTOR ELECTRONICS COOLING PUMP (MECP) | |
| 37 | * | * | Not Used | |
| 38 | CET70 (VT-WH) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC TRANSMISSION SHIFTER WAKEUP | |
| 39 | * | * | Not Used | |
| 40 | CE302 (YE-BU) | 20 | CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) |
