Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module (TCM) Connector End View (C1458B)

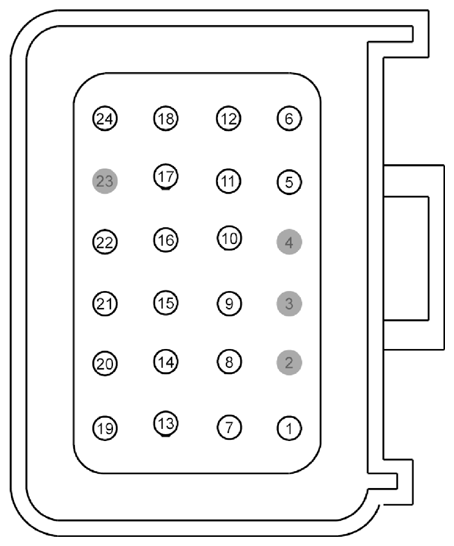

Fig 1: Identifying Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module Connector (C1458B)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | DYT25 (GY-BN) | 20 | TRANSAXLE - HYBRID # GENERATOR RESOLVER FEEDBACK (G_SHIELD) | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | VYT20 (YE-VT) | 20 | TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK COSINE (MS4) | |
| 6 | VYT15 (YE-GY) | 20 | CTRL MOD. - HYBRID TRANSAXLE # MOTOR RESOLVER EXCITATION SIGNAL 1 (MR1) | |
| 7 | VYT24 (BN-WH) | 20 | CTRL MOD. - HYBRID TRANSAXLE # GENERATOR RESOLVER EXCITATION SIGNAL 2 (GR2) | |
| 8 | VYT23 (WH) | 20 | CTRL MOD. - HYBRID TRANSAXLE # GENERATOR RESOLVER EXCITATION SIGNAL 1 (GR1) | |
| 9 | RYT22 (GY-OG) | 20 | SENSOR - HYBRID TRANSMISSION OIL TEMPERATURE (TOIL) - | |
| 10 | VYT22 (GN-OG) | 20 | SENSOR - HYBRID TRANSMISSION OIL TEMPERATURE (TOIL) + | |
| 11 | VYT19 (GN-BN) | 20 | TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK COSINE (MS2) | |
| 12 | VYT16 (WH-GN) | 20 | CTRL MOD. - HYBRID TRANSAXLE # MOTOR RESOLVER EXCITATION SIGNAL 2 (MR2) | |
| 13 | VYT25 (VT-BN) | 20 | TRANSAXLE - HYBRID # GENERATOR RESOLVER FEEDBACK SINE (GS1) | |
| 14 | VYT26 (YE-BU) | 20 | TRANSAXLE - HYBRID # GENERATOR RESOLVER FEEDBACK SINE (GS3) | |
| 15 | RYT29 (WH-BU) | 20 | SENSOR - HYBRID TRANSAXLE GENERATOR COIL TEMPERATURE (TGCOIL) - | |
| 16 | VYT29 (VT-GN) | 20 | SENSOR - HYBRID TRANSAXLE GENERATOR COIL TEMPERATURE (TGCOIL) + | |
| 17 | DYT17 (GY-BN) | 20 | TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK (M_SHIELD) | |
| 18 | VYT18 (BU-WH) | 20 | TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK SINE (MS3) | |
| 19 | VYT27 (WH-BN) | 20 | TRANSAXLE - HYBRID # GENERATOR RESOLVER FEEDBACK COSINE (GS2) | |
| 20 | VYT28 (BN-YE) | 20 | TRANSAXLE - HYBRID # GENERATOR RESOLVER FEEDBACK COSINE (GS4) | |
| 21 | RYT21 (GN-WH) | 20 | SENSOR - HYBRID TRANSAXLE MOTOR COIL TEMPERATURE (TMCOIL) - | |
| 22 | VYT21 (BU-GN) | 20 | SENSOR - HYBRID TRANSAXLE MOTOR COIL TEMPERATURE (TMCOIL) + | |
| 23 | * | * | Not Used | |
| 24 | VYT17 (BN-BU) | 20 | TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK SINE (MS1) |
