Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module (TCM) Connector End View (C1458D)

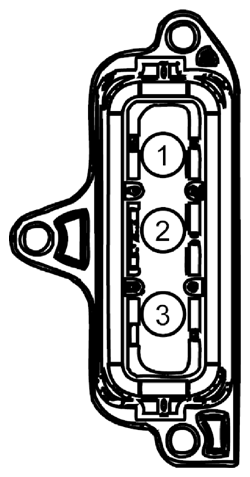

Fig 1: Identifying Secondary On Board Diagnostic Module C (SOBDMC)/Transmission Control Module Connector (C1458D)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	HYA07 (WH-BU)	20	GWP (GENERATOR W PHASE)
2	HYA08 (WH-OG)	20	GVP (GENERATOR V PHASE)
3	HYA09 (WH-BU)	20	GUP (GENERATOR U PHASE)
