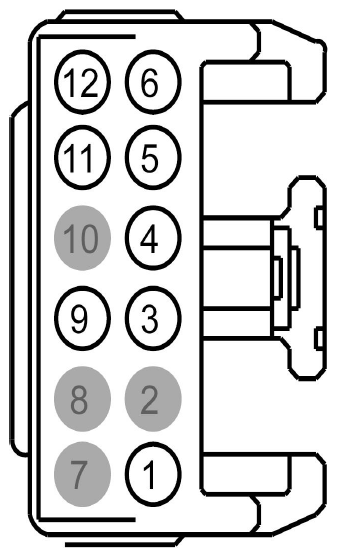

Body Control Module (BCM) Connector End View (C2280A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VLN33 (GY-VT) | 20 | CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) | |
| 2 | * | * | Not Used | |
| 3 | SBP11 (BU-RD) | 22 | FUSE - 11 OR CIRCUIT BREAKER | |
| 4 | SBP29 (GY-RD) | 18 | FUSE - 29 OR CIRCUIT BREAKER | |
| 5 | SBP46 (BN-RD) | 22 | FUSE - 46 OR CIRCUIT BREAKER | |
| 6 | SBP28 (GN-RD) | 20 | FUSE - 28 OR CIRCUIT BREAKER | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | SBP23 (WH-RD) | 20 | FUSE - 23 OR CIRCUIT BREAKER | |
| 10 | * | * | Not Used | |
| 11 | SBP24 (VT-RD) | 20 | FUSE - 24 OR CIRCUIT BREAKER | |
| 12 | SBP27 (BU-RD) | 16 | FUSE - 27 OR CIRCUIT BREAKER |

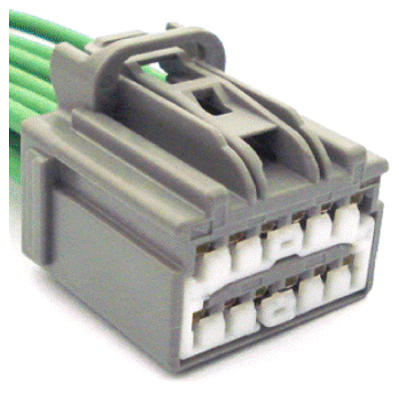

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1047 | Service Part Number: 9U2Z-14S411-ZA Gauge: 14 Pin material: Silver Cavities: 12 Vehicle Uses
|
