Body Control Module (BCM) Connector End View (C2280G)

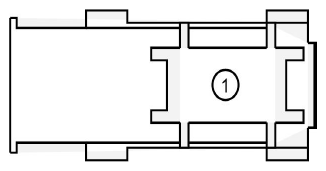

Fig 1: Identifying Body Control Module (BCM) Connector (C2280G)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SDC02 (RD)	6	BATTERY- # PLUS
