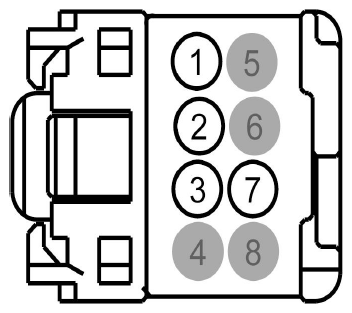

Front Lighting Control Module (FLM) Connector End View (C205)

Fig 1: Identifying Front Lighting Control Module (FLM) Connector (C205)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP23 (WH-RD)	20	FUSE - 23 OR CIRCUIT BREAKER
2	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
3	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	GD115 (BK-GY)	22	GROUND - CROSS CAR BEAM # 2ND POINT
8	*	*	Not Used

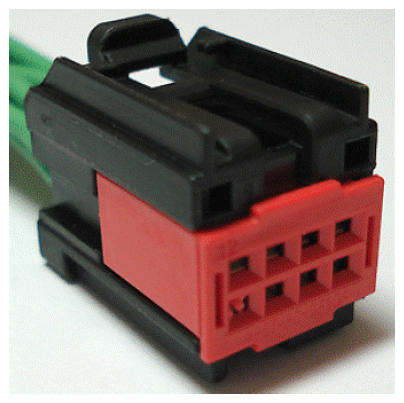

Available Pigtail Kits

Pigtail Kit Part Number WPT-995

Service Part Number: 3U2Z-14S411-BGB  Gauge: 18  Pin material: Silver  Cavities: 8  Vehicle Uses Lamp - Dimmer Switch Switch - 4x4 Control Switch - Adjustable Pedal Switch - Center Stack (Multipurpose) Switch - Dimmer Switch - Hazard Warning Switch - Moon Roof/Sun Roof Switch - Multifunction Switch - Multifunction (Wiper) Switch - Seat (3rd Row) Switch - Third Row Power Folding Seat Switch - Traction Control
