Fuel Pump Control Module Connector End View (C4033)

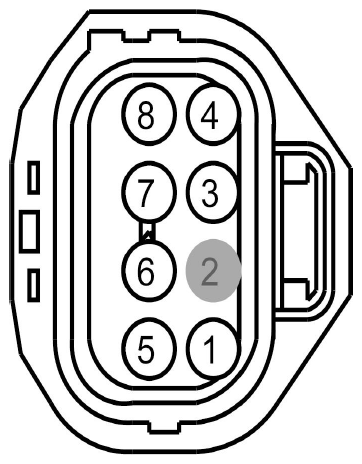

Fig 1: Identifying Fuel Pump Control Module Connector (C4033)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE608 (VT-GN)	14	RELAY - FUEL PUMP
2	*	*	Not Used
3	VE225 (YE-OG)	20	FUEL PUMP COMMAND (FPC)
4	GD476 (BK-WH)	14	GROUND - FRAME REAR LEFT
5	CE515 (YE-GY)	14	DRIVER - FUEL PUMP POWER (FPPWR)
6	CR167 (YE-VT)	20	CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS)
7	VE518 (BN-WH)	20	MONITOR - FUEL PUMP (FPM)
8	RE515 (WH-BN)	14	DRIVER - FUEL PUMP RETURN (FPRTN)

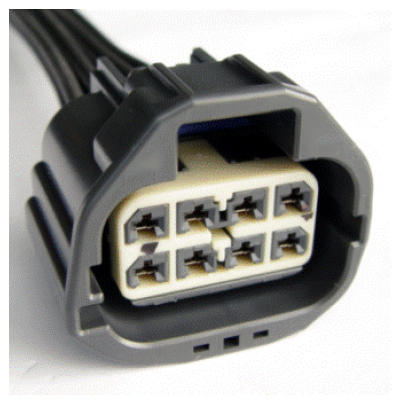

Available Pigtail Kits
Pigtail Kit Part Number WPT-521	Service Part Number: 3U2Z-14S411-TZA  Gauge: 12  Pin material: Tin  Cavities: 8  Vehicle Uses Fuel Pump/Sending Unit Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear Relay - Fuel Pump
