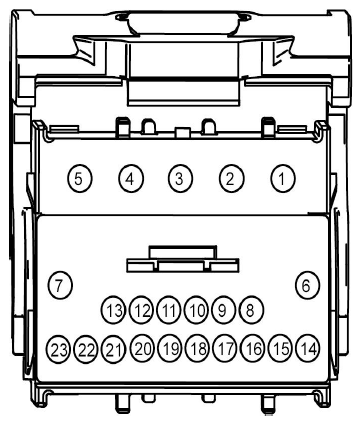

| 1 |
SBP23 (WH-RD) |
20 |
FUSE - 23 OR CIRCUIT BREAKER |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
GD115 (BK-GY) |
20 |
GROUND - CROSS CAR BEAM # 2ND POINT |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
SBP27 (BU-RD) |
16 |
FUSE - 27 OR CIRCUIT BREAKER |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
* |
* |
Not Used |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
* |
* |
Not Used |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
CCB08 (VT-WH) |
22 |
SWITCH - BRAKE PEDAL POSITION (BPP) NORMAL OPEN |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
CPK34 (BN-VT) |
20 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
* |
* |
Not Used |
|
