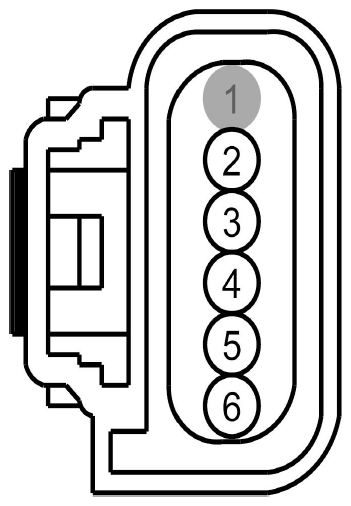

Side Obstacle Detection Control Module - left (SOD-L) Connector End View (C4369)

Fig 1: Identifying Side Obstacle Detection Control Module - Left (SOD-L) Connector (C4369)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	GD149 (BK-GY)	20	GROUND - PILLAR D LEFT
3	VDB07 (VT-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
4	VDB06 (GY-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
5	CBP34 (VT-BN)	20	FUSE - 34 OR CIRCUIT BREAKER
6	CRB04 (YE-GN)	20	SENSOR - BLINDSPOT WARNING LEFT HAND # WARNING ALERT

Available Pigtail Kits

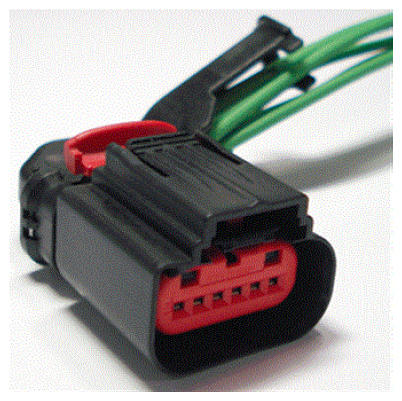

Pigtail Kit Part Number WPT-795	Service Part Number: 3U2Z-14S411-FJAA  Gauge: 18  Pin material: Gold  Cavities: 6  Vehicle Uses Sensor - Air Suspension Sensor - Coolant Level

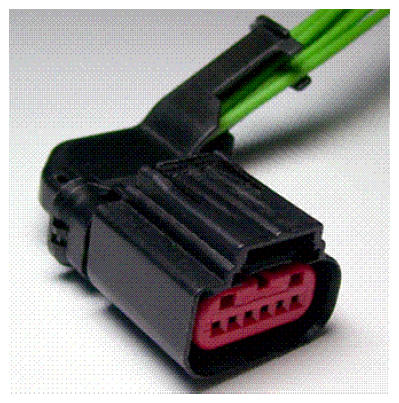

Pigtail Kit Part Number WPT-1023	Service Part Number: 3U2Z-14S411-FJAB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Control - Electronic Throttle Sensor - Mass Air Flow Sensor - Throttle Position

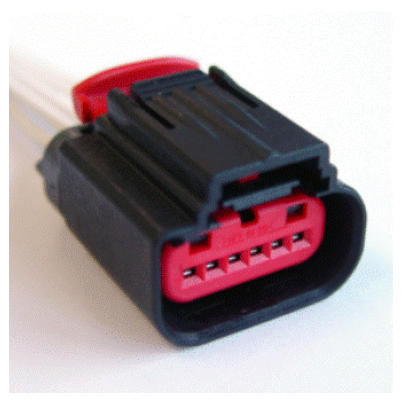

Pigtail Kit Part Number WPT-1241	Service Part Number: 3U2Z-14S411-FJAC  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Control - Electronic Throttle Sensor - Mass Air Flow
