Steering Column Control Module (SCCM) Connector End View (C2414B)

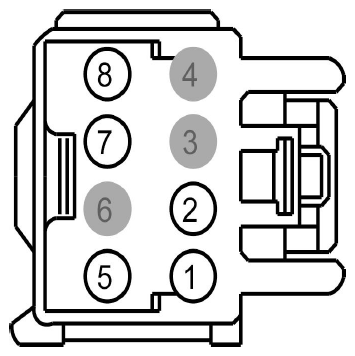

Fig 1: Identifying Steering Column Control Module (SCCM) Connector (C2414B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPP22 (GY-BN)	20	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD
2	CPP04 (GY)	20	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP
3	*	*	Not Used
4	*	*	Not Used
5	GD115 (BK-GY)	20	GROUND - CROSS CAR BEAM # 2ND POINT
6	*	*	Not Used
7	CPP02 (BN)	20	CTRL MOD. - MOTOR STEERING WHEEL TILT/TEL
8	SBP24 (VT-RD)	20	FUSE - 24 OR CIRCUIT BREAKER

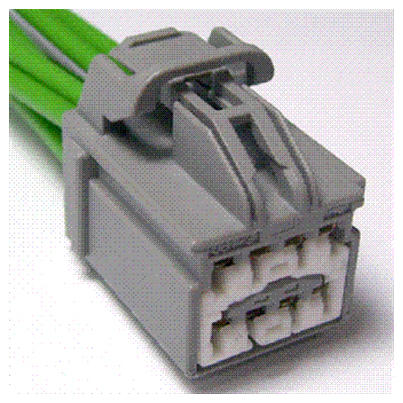

Available Pigtail Kits
Pigtail Kit Part Number WPT-1128	Service Part Number: 3U2Z-14S411-BCB  Gauge: 16  Pin material: Silver  Cavities: 8  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Mirror - Sideview Solenoid - Brake Shift Park Interlock Switch - Headlamp Switch - Power Window - Quarter Glass Switch - Sliding Door Contact
