Side Obstacle Detection Control Module-Right (Sod-R) Connector End View (C4370)

Fig 1: Identifying Side Obstacle Detection Control Module-Right (SOD-R) Connector (C4370)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD152 (BK-BU)	22	GROUND - PILLAR D RIGHT # 2ND POINT (6L2T)
2	GD152 (BK-BU)	22	GROUND - PILLAR D RIGHT # 2ND POINT (6L2T)
3	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
4	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
5	CBR11 (BU-RD)	22	FUSE OR CIRCUIT BREAKER
6	*	*	Not Used

Available Pigtail Kits

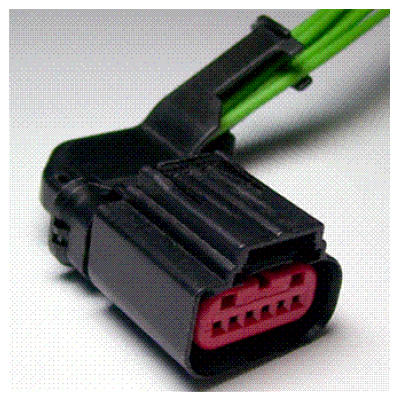

Pigtail Kit Part Number WPT-795	Service Part Number: 3U2Z-14S411-FJAA  Gauge: 18  Pin material: Gold  Cavities: 6  Vehicle Uses Sensor - Air Suspension Sensor - Coolant Level

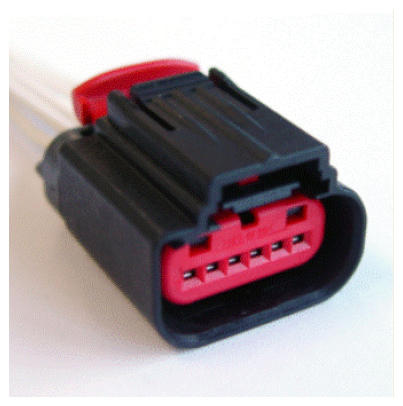

Pigtail Kit Part Number WPT-1023	Service Part Number: 3U2Z-14S411-FJAB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Control - Electronic Throttle Sensor - Mass Air Flow Sensor - Throttle Position

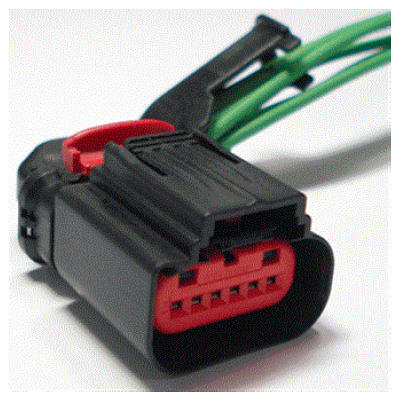

Pigtail Kit Part Number WPT-1241	Service Part Number: 3U2Z-14S411-FJAC  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Control - Electronic Throttle Sensor - Mass Air Flow
