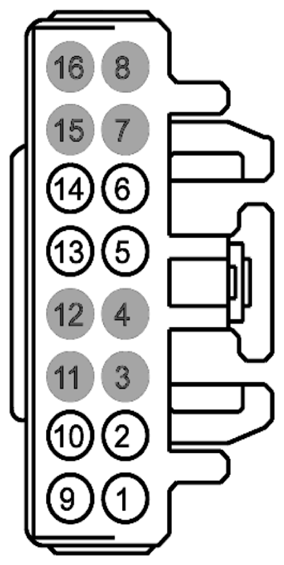

Audio Digital Signal Processing (DSP) Module Connector End View (C4326C)
WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VME01 (GN-VT) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 + | |
| 2 | VME72 (WH) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 + | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | SME23 (VT-RD) | 14 | CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER ENABLE | |
| 6 | SME23 (VT-RD) | 14 | CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER ENABLE | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | RME01 (GY) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 - | |
| 10 | RME72 (BU-GN) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 - | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | GD180 (VT-RD) | 14 | GROUND - FRAME MIDDLE LEFT (6L2T) | |
| 14 | GD180 (VT-RD) | 14 | GROUND - FRAME MIDDLE LEFT (6L2T) | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used |

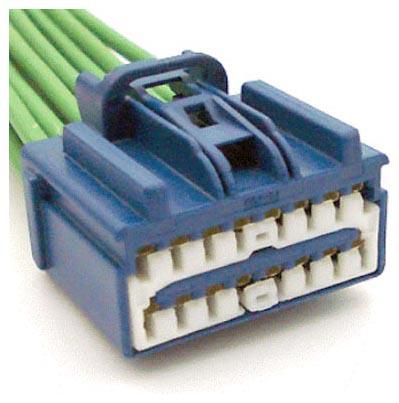

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-959 | Service Part Number: 3U2Z-14S411-BDAB Gauge: 14 Pin material: Silver Cavities: 16 Vehicle Uses
|
