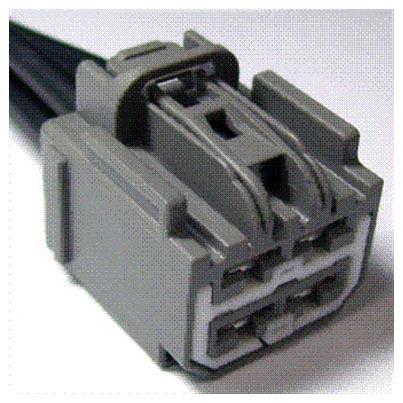

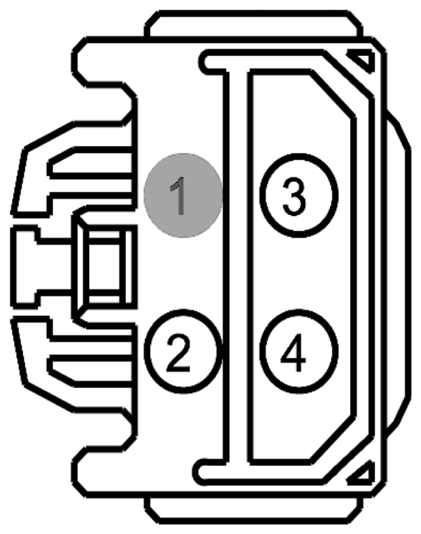

Blower Motor Control Module Connector End View (C297A)
WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | GD138 (BK-WH) | 10 | GROUND - COWL SIDE/PILLAR A RIGHT (6L2T) | |
| 3 | VH101 (WH-VT) | 18 | CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL | |
| 4 | CH402 (YE-GN) | 10 | RELAY - FRONT BLOWER |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1177 | Service Part Number: AU2Z-14S411-BHA Gauge: 10 Pin material: Tin Cavities: 4 Vehicle Uses
|
