Body Control Module (BCM) Connector End View (C2280B)
WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

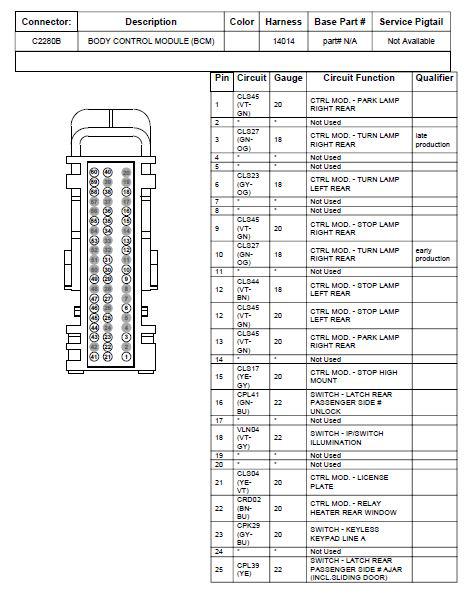

Fig 1: Identifying Body Control Module Connector (C2280B) (1 of 3)
Courtesy of FORD MOTOR CO.

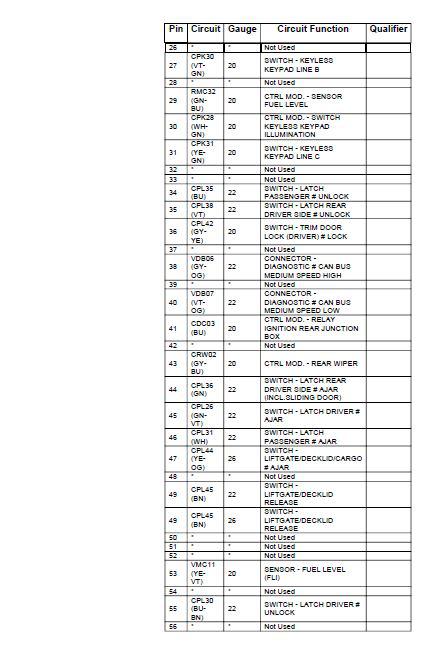

Fig 2: Identifying Body Control Module Connector (C2280B) (2 of 3)
Courtesy of FORD MOTOR CO.

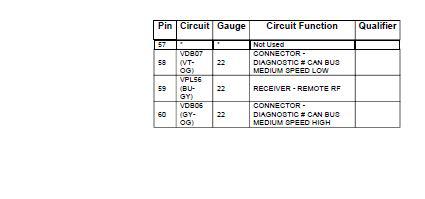

Fig 3: Identifying Body Control Module Connector (C2280B) (3 of 3)
