Body Control Module (BCM) Connector End View (C2280G)

WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

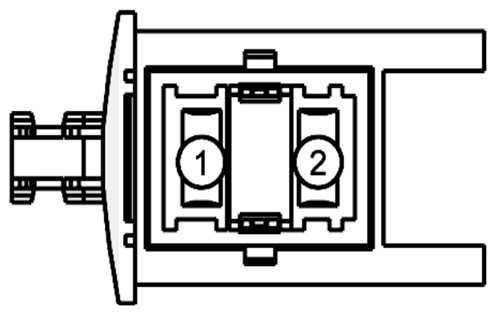

Fig 1: Identifying Body Control Module Connector (C2280G)
G09224074Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 SBB18 (YE) 6.00 FUSE OR CIRCUIT BREAKER
2 SBB17 (RD) 6.00 FUSE OR CIRCUIT BREAKER
