Collapsible Steering Column Module Connector End View (C2360)

WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

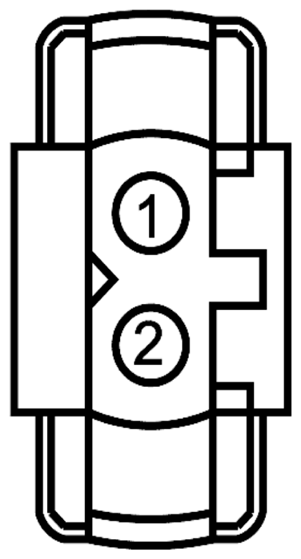

Fig 1: Identifying Collapsible Steering Column Module Connector (C2360)
G09224082Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 CR168 (WH-GN) 20 CTRL MOD. - PYROTECHNIC STEERING COLUMN +
2 RR168 (BU-WH) 20 CTRL MOD. - PYROTECHNIC STEERING COLUMN -
Available Pigtail Kits
Pigtail Kit Part Number WPT-1229

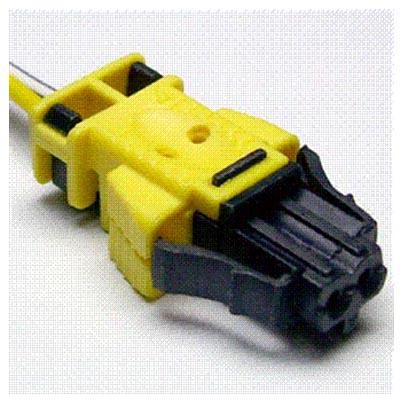

G09224083
Service Part Number: BU2Z-14S411-BNA
Gauge: 20
Pin material: FCI - Airbag
Cavities:
Vehicle Uses
  • Deployable Steering Column
