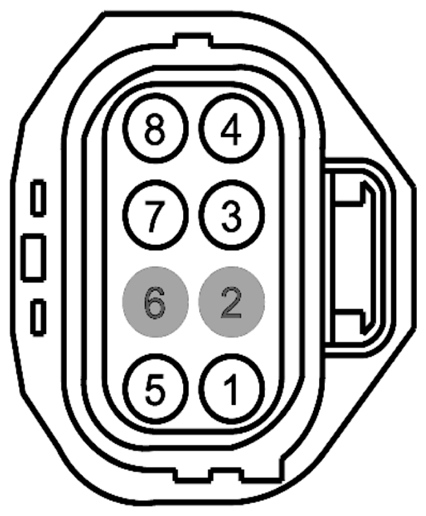

Fuel Pump Driver Module (FPDM) Connector End View (C3239)
WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBP56 (BU-GN) | 12 | FUEL PUMP RELAY OUTPUT (VPWR) | |
| 2 | * | * | Not Used | |
| 3 | VE225 (YE-OG) | 20 | CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) | |
| 4 | GD152 (BK-BU) | 12 | GROUND - PILLAR D RIGHT # 2ND POINT (6L2T) | |
| 5 | CE515 (YE-GY) | 14 | DRIVER - FUEL PUMP POWER (FPPWR) | |
| 6 | * | * | Not Used | |
| 7 | VE518 (BN-WH) | 20 | MONITOR - FUEL PUMP (FPM) | |
| 8 | RE515 (WH-BN) | 14 | FUEL PUMP RETURN (FPRTN) |

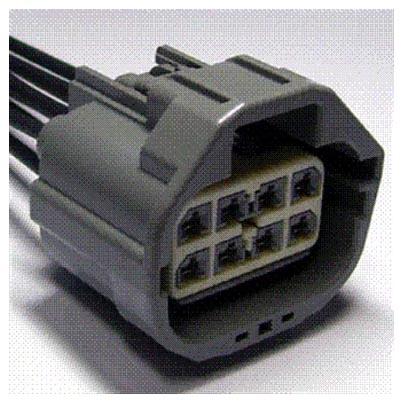

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1332 | Service Part Number: DU2Z-14S411-CA Gauge: 14 Pin material: Tin Cavities: 8 Vehicle Uses
|
