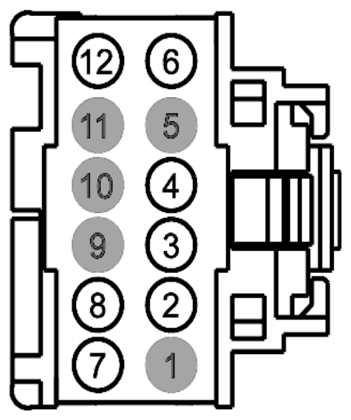

Instrument Panel Console Switch Assembly Connector End View (C2114)
WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | CMP32 (GN) | 22 | SWITCH - PARKING AID | |
| 3 | CMP18 (GN-BN) | 26 | SWITCH - PARKING AID | |
| 4 | CPR63 (GY-YE) | 26 | SWITCH - POWER LIFTGATE # OPEN/CLOSE | |
| 5 | * | * | Not Used | |
| 6 | VLN04 (VT-GY) | 22 | SWITCH - IP/SWITCH ILLUMINATION | |
| 7 | CMP02 (GN-BU) | 22 | CTRL MOD. - PARKING AID # INDICATOR STATUS | |
| 8 | CMP31 (WH-VT) | 26 | CTRL MOD. - PARKING AID # INDICATOR STATUS | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | GD133 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT (6L2T) |

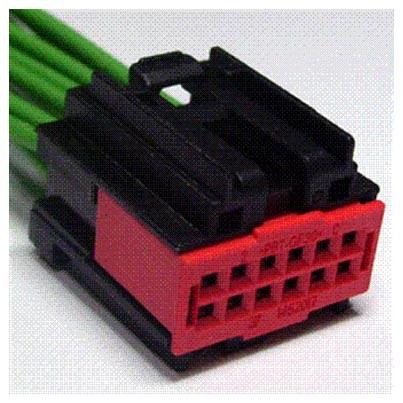

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1360 | Service Part Number: 4U2Z-14S411-MB Gauge: 20 Pin material: Silver Cavities: 12 Vehicle Uses
|
