Power Steering Control Module (PSCM) Connector End View (C1463A)

WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

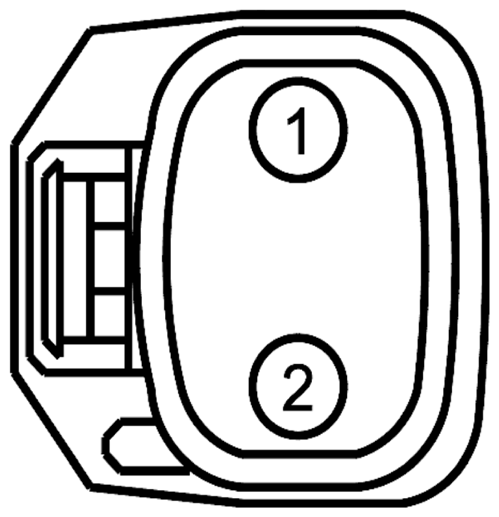

Fig 1: Identifying Power Steering Control Module Connector (C1463A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBF01 (RD)	10	00 FUSE OR CIRCUIT BREAKER
2	GD120 (BK-GN)	10	00 GROUND - FENDER FRONT LEFT
