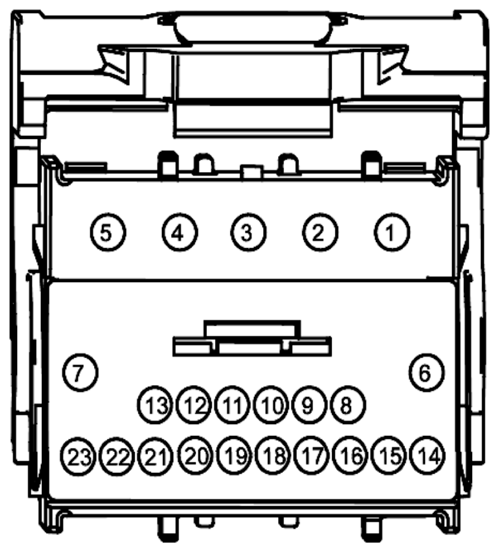

Remote Function Actuator (RFA) Module Connector End View (C4392E)
WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | CPK20 (BN-GN) | 22 | SWITCH - LOCK PASSENGER | |
| 3 | * | * | Not Used | |
| 4 | CPK25 (GN-OG) | 22 | SWITCH - HANDLE UNLOCK REAR DRIVER SIDE | early production |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | CPL45 (BN) | 22 | SWITCH - LIFTGATE/DECKLID RELEASE | |
| 19 | CPK19 (BU-GN) | 22 | SWITCH - LOCK DRIVER | |
| 20 | CPK26 (BN-YE) | 22 | SWITCH - HANDLE UNLOCK REAR PASSENGER SIDE | early production |
| 21 | CPK23 (YE-VT) | 22 | SWITCH - HANDLE UNLOCK DRIVER | |
| 22 | CPK24 (BU-GY) | 22 | SWITCH - HANDLE UNLOCK PASSENGER | |
| 23 | * | * | Not Used |
