Body Control Module (BCM): Removal

WARNING: This page is about a different car, the 2015 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If installing a new BCM, verify at least 2 of the vehicle keys are available prior to carrying out this procedure.

  1. 1.

    NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Upload the module configuration information from the BCM into the scan tool by following the scan tool on-screen instructions. Refer to: Module Configuration - System Operation and Component Description .

  1. 2.

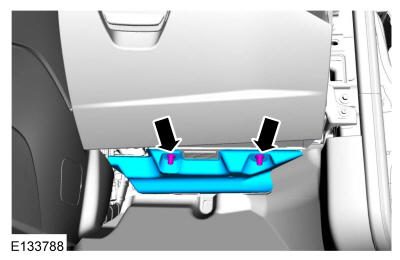

    Remove the 2 instrument panel insulator retainers and the instrument panel insulator.
GFD50675Courtesy of FORD MOTOR COMPANY

  1. 3.

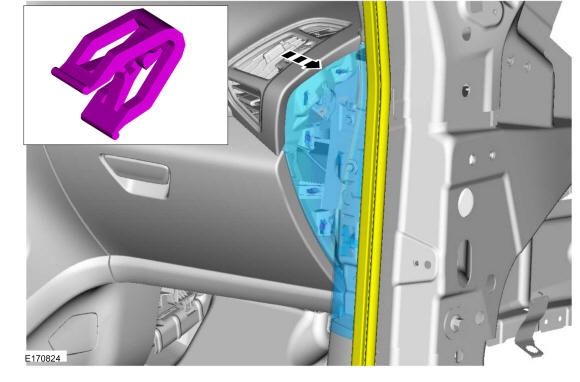

    Position the front door weather-strip aside and remove the instrument side trim panel.
GFD50998Courtesy of FORD MOTOR COMPANY

  1. 4.

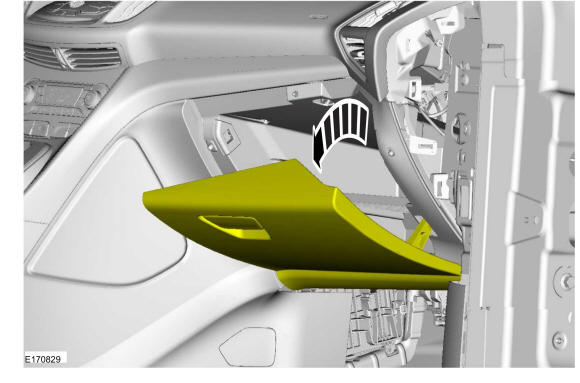

    Open the glove box door.
GFD50707Courtesy of FORD MOTOR COMPANY

  1. 5.

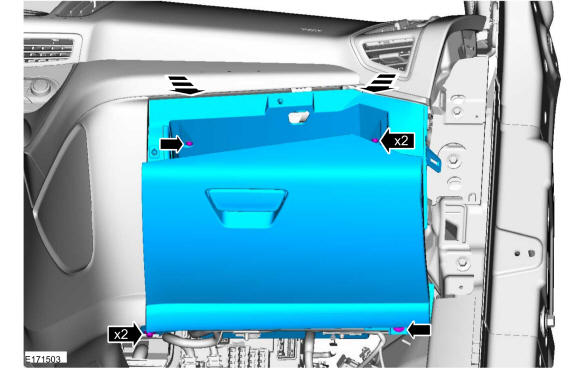

    Remove the screws and the glove box.
GFD50999Courtesy of FORD MOTOR COMPANY

  1. 6.

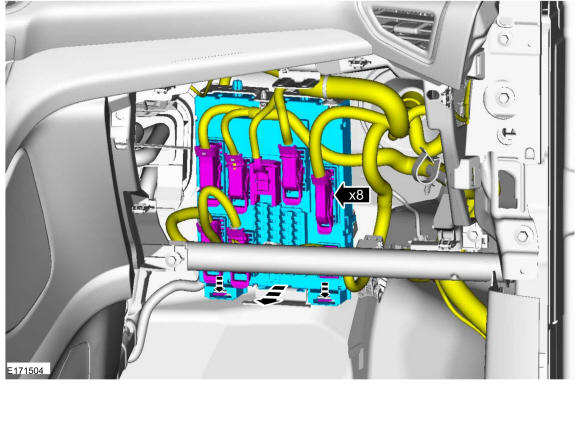

    Disconnect the BCM electrical connectors and remove the BCM.
GFD51000Courtesy of FORD MOTOR COMPANY
