Remote Function Actuator (RFA) Module: Removal

WARNING: This page is about a different car, the 2015 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If installing a new RFA module, verify at least 2 of the vehicle keys are available prior to carrying out this procedure.

All vehicles

1.

Remove the LH loadspace trim panel. Refer to: Loadspace Trim Panel .

Sony ® sound

2.

Remove the subwoofer. Refer to: Subwoofer Speaker .

All vehicles

3.

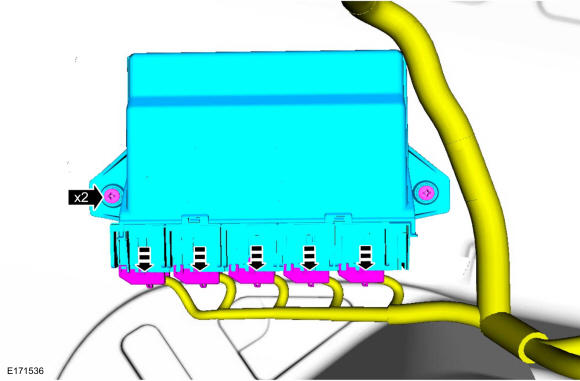

- Disconnect the electrical connector.
- Remove the retainers and RFA.
  Torque: 89 lb.in (10 Nm)

GFD51007

Courtesy of FORD MOTOR COMPANY
