Ground Distribution

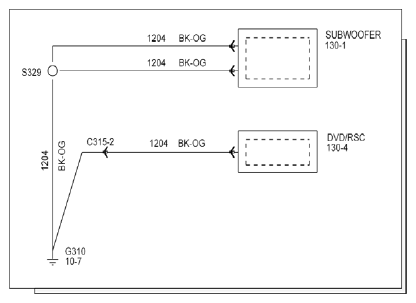

"Grounds" contains the schematic that shows the complete details for each ground connection or main ground splice. This is useful in diagnosing a problem affecting several components at once (poor ground connection or ground splice). All details (wires; splices, connectors) between the ground point and the component are shown These ground connection details are shown here in order to keep the individual schematics as uncluttered as possible.
