Audio Front Control Module (ACM): Removal
WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Upload the ACM configuration to the scan tool by following the scan tool on-screen instructions.
- Remove the instrument panel center middle finish panel.
Refer to: INSTRUMENT PANEL CENTER MIDDLE TRIM PANEL .

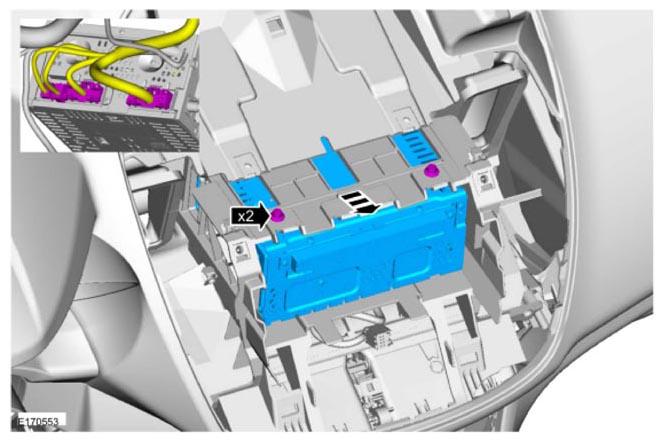

- Torque:
27 lb.in (3 Nm)
