SYNC Module [APIM]: Removal
WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

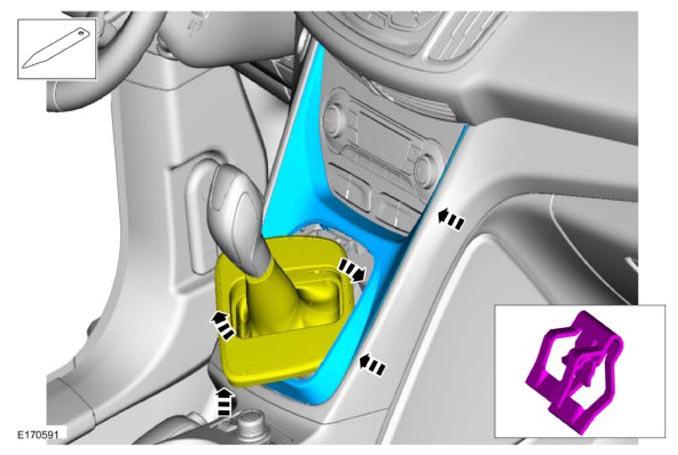

- Remove the selector lever trim panel.
- Remove the lower instrument panel center finish panel.
Refer to: INSTRUMENT PANEL CENTER FINISH PANEL .

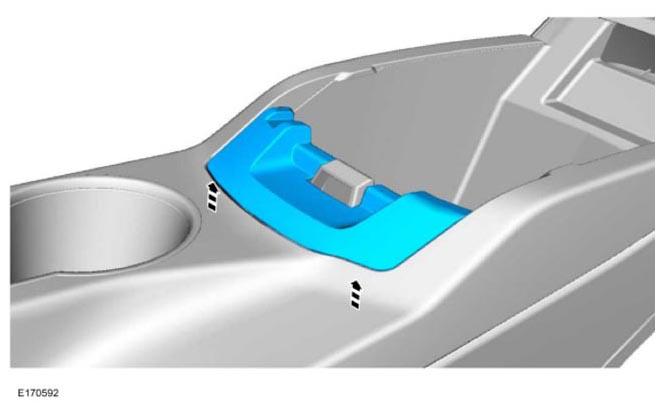

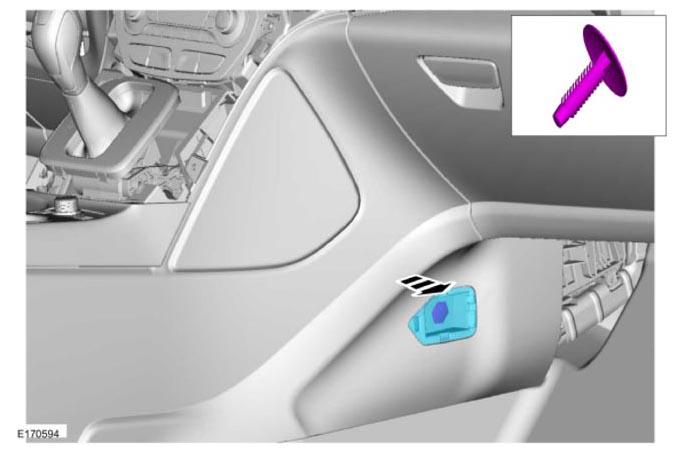

- Remove the floor console upper trim panel retainer.

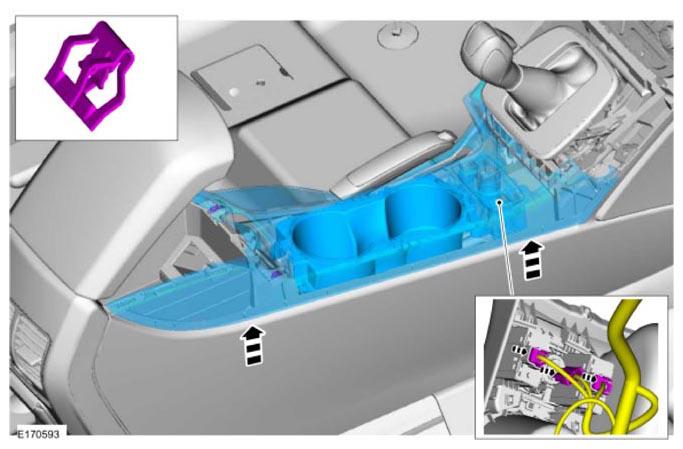

- Remove the floor console upper trim panel.

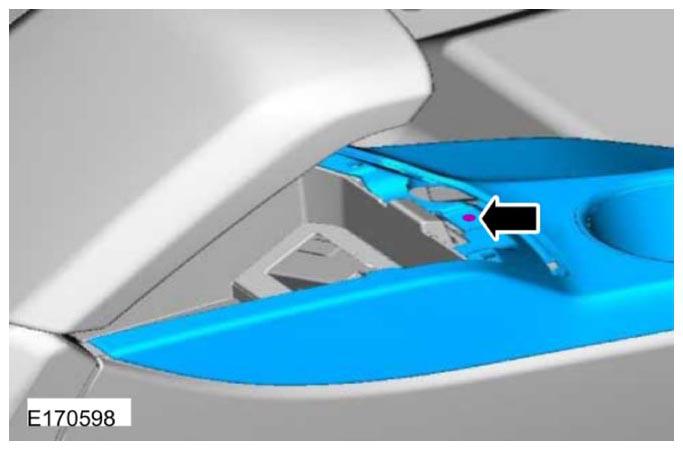

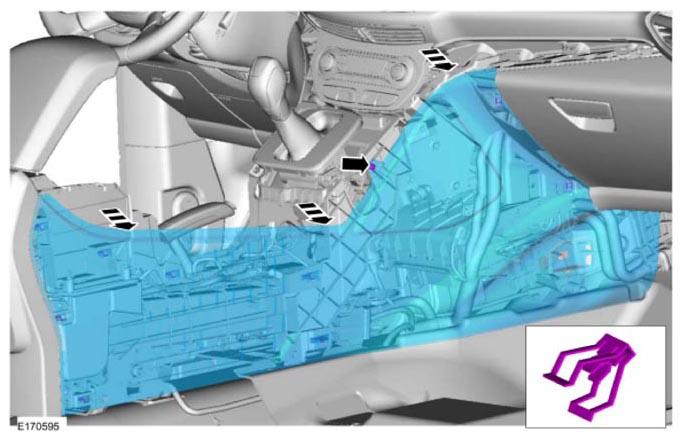

- Remove the RH
side floor console trim panel.

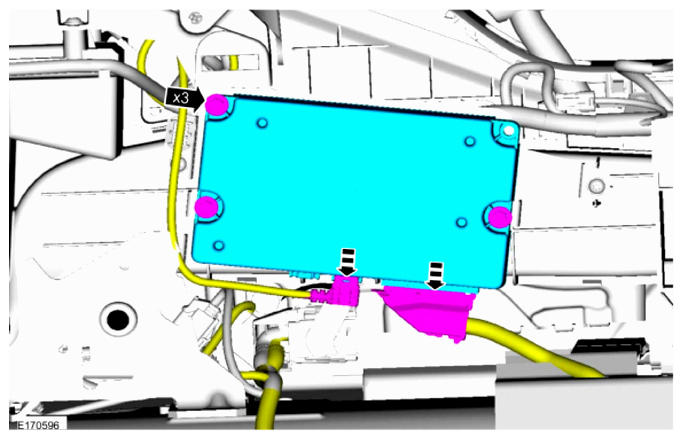

- Torque:
25 lb.in (2.8 Nm)
