Front Lighting Control Module (FLM): Installation

WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect and install the Front Lighting Control Module (FLM) into the lower Left Hand (LH) instrument panel trim panel.
  2. Install the lower Left Hand (LH) instrument panel trim panel.

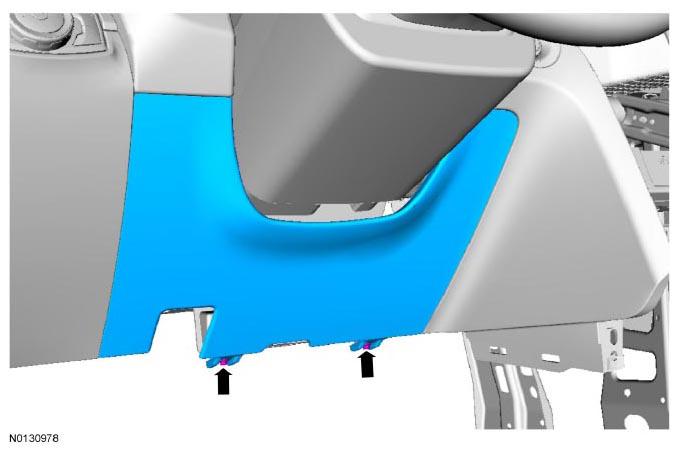

  3. Install the steering column cover trim panel and the 2 trim panel screws.
    G07428901
