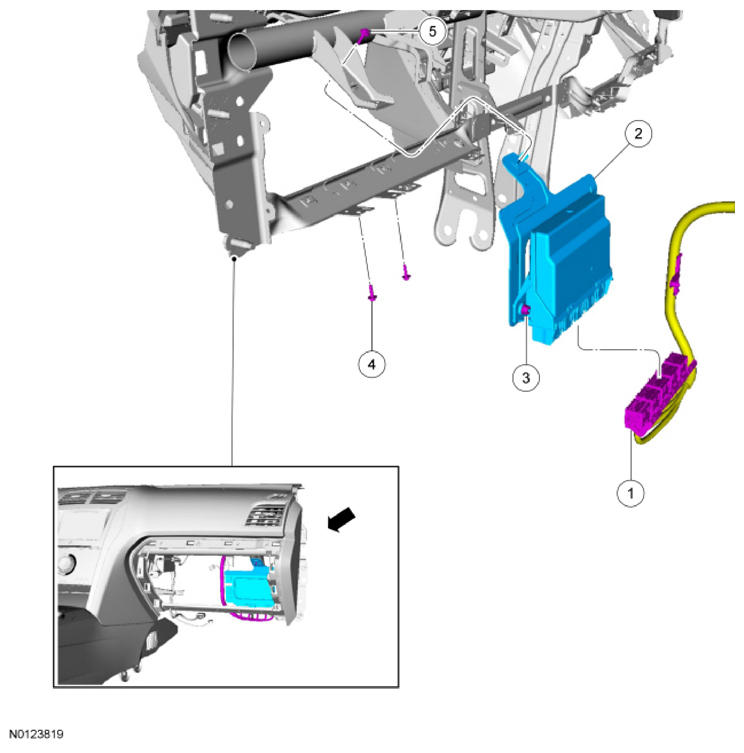

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |
| 1 |
- |
RFA
electrical connectors |
|
|
|
| 2 |
19G481 |
RFA
module |
|
|
|
| 3 |
N621901 |
RFA
module nut (2 required) |
|
|
3 Nm (27 lb-in) |
| 4 |
W702921 |
RFA
module bracket bottom bolt (2 required) |
|
|
5 Nm (44 lb-in) |
| 5 |
W707628 |
RFA
module bracket top bolt |
|
|
5 Nm (44 lb-in) |
