Repair Procedures: Removal: Notes

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Loosen 2 screws holding the overhead console (A).

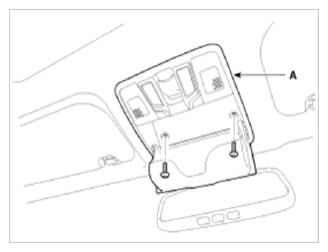

Fig 1: Identifying Overhead Console
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A) of sunroof switch and lamp switch then remove the overhead console lamp assembly.

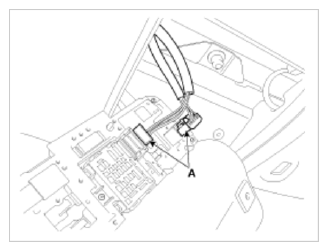

Fig 2: Identifying Connectors Of Sunroof Switch
Courtesy of HYUNDAI MOTOR AMERICA
If necessary to replace the bulb, replace the bulb after opening the overhead console lens (A).
